MIL-PRF-1/1383D
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
.124 DIA .126 DIA
3.15 DIA 3.20 DIA
B
.505 DIA .506 DIA
12.83 DIA 12.85 DIA
C
.686
.690
17.42
17.53
D
.339
.349
8.61
8.86
E
.343
.345
8.71
8.76
F
.500
.501
12.70
12.73
G
.249
.251
6.32
6.38
H
1.624 DIA 1.625 DIA
41.25 DIA 41.28 DIA
J
1.660 DIA 1.661 DIA
42.16 DIA 42.19 DIA
NOTES
1. Tapped section of cylinder shall be concentric with untapped section of cylinder
within .002 inch (0.05 mm).
2. Plug sides and pin sides shall be parallel within .001 inch (0.03 mm).

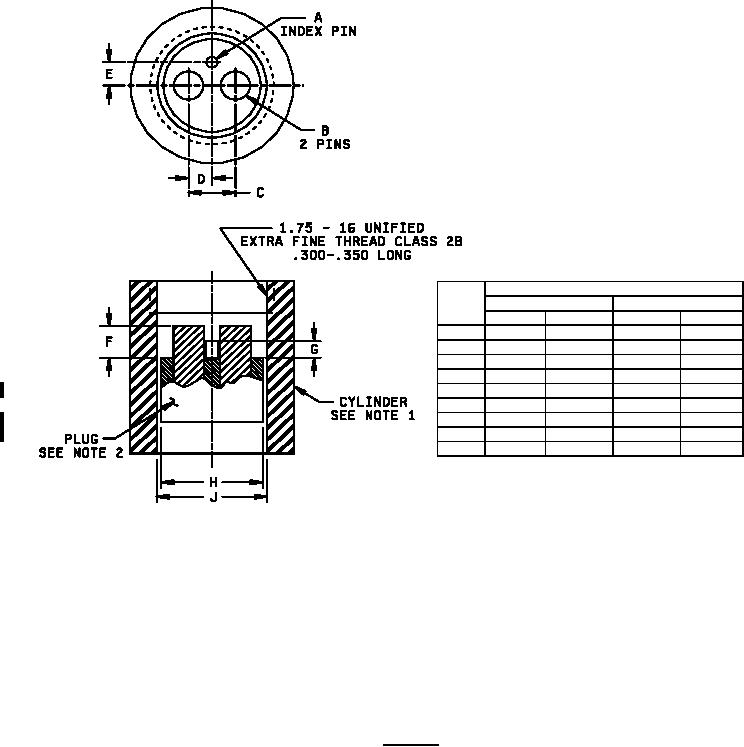

FIGURE 6. Gauge G2.
