MIL-PRF-1/1383D
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
.255 DIA
.256 DIA
6.48 DIA
6.50 DIA
B
.218
.220
5.54
5.59
C
.436
.440
11.07
11.18
D
.188
.189
4.78
4.80
E
.894 DIA
.895 DIA
22.71 DIA 22.73 DIA
F
.910 DIA
.911 DIA
23.11 DIA 23.14 DIA
NOTES:
1. Tapped section of cylinder shall be concentric with untapped section of cylinder within .002 inch (0.05 mm).
2. Plug sides and pin sides shall be parallel within .001 inch (0.03 mm).

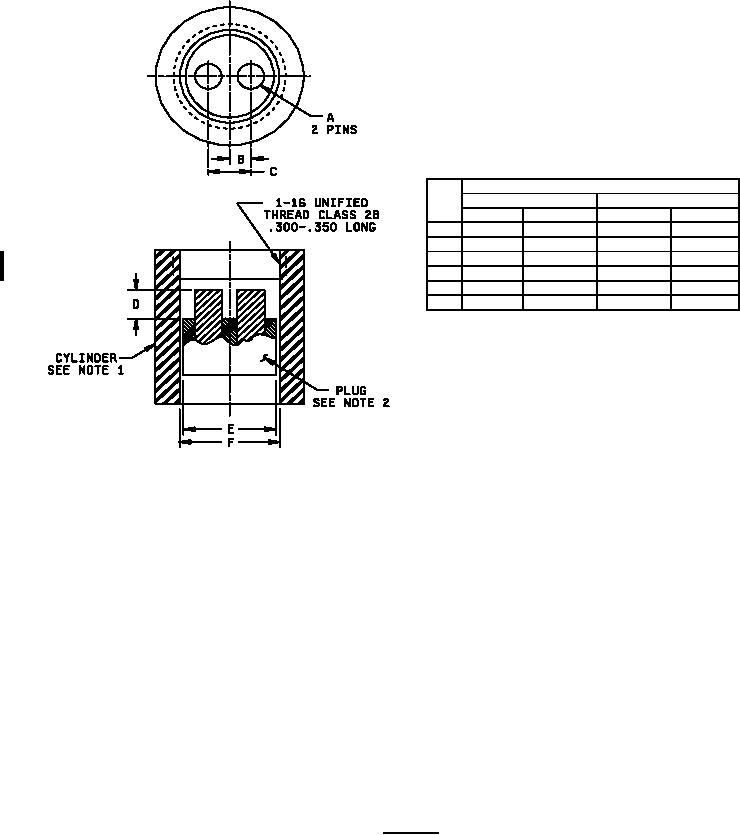

FIGURE 5. Gauge G1.
15
