MIL-PRF-1/1000B
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
Conformance inspection
A
1.245 RAD
1.255 RAD
31.62 RAD
31.88 RAD
B
.674
.678
17.12
17.22
C
.674
.678
17.12
17.22
D
1.000 RAD
25.40 RAD
E
1.870
1.880
47.50
47.75
F
.933
.943
23.70
23.95
G
1.870
1.880
47.50
47.75
H
.164 DIA
.174 DIA
4.16 DIA
4.412 DIA
J
.735
.739
18.67
18.77
K
.735
.739
18.67
18.77
L
.4965
.4975
12.611
12.636
M
.0265
.0275
0.67
0.70
N
.4965
.4975
12.61
12.64
P
.0265
.0275
0.67
0.70
Q
.395
.405
10.03
10.30
R
1.982
1.984
50.34
50.39
S
.995
1.005
25.27
25.53
T
1.121
1.123
28.47
28.52
NOTE: Unless otherwise specified, tolerance on all decimal dimensions IS to be ±.005.

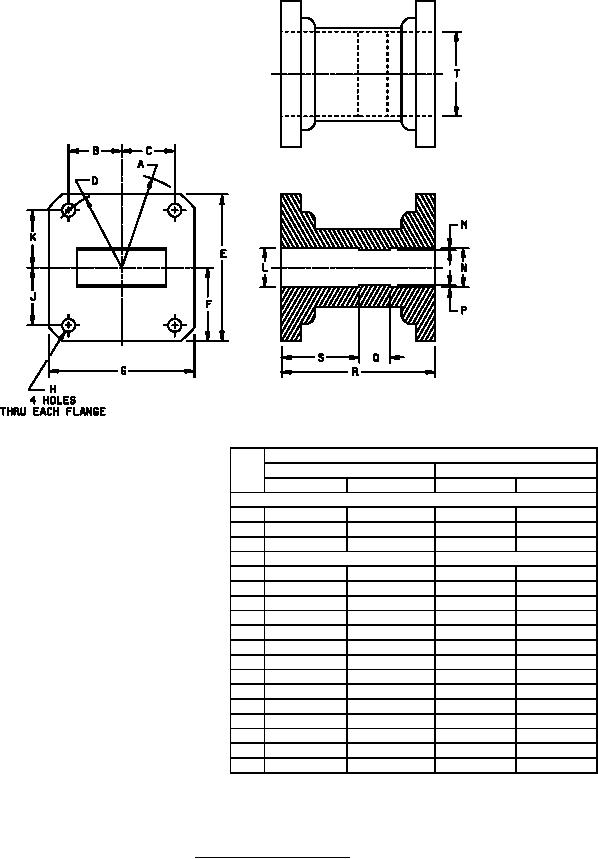

TABLE 6. Differential reflection standard.
