MIL-PRF-1/1000B
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
Conformance inspection
A
1.000 RAD
25.40 RAD
B
.674
.678
17.12
17.22
C
.674
.678
17.12
17.22
D
1.245 RAD
1.255 RAD
31.62 RAD
31.88 RAD
E
1.870
1.880
47.50
47.75
F
.495
.499
12.57
12.67
G
.933
.943
23.70
23.95
H
.4075 DIA
.4175 DIA
10.35 DIA
10.60 DIA
J
1.121
1.123
28.47
28.52
K
1.870
1.880
47.50
47.75
L
.164 DIA
.174 DIA
4.16 DIA
4.42 DIA
M
.735
.739
18.67
18.77
N
.735
.739
18.67
18.77
P
.025 RAD
.035 RAD
0.64 RAD
0.89 RAD
Q
1.267
1.273
32.18
32.33
R
1.492
1.498
37.90
38.05
S
.014
.016
0.35
0.41
T
.342
.348
8.68
8.84
U
.4005
.4015
10.17
10.20
V
.461
.463
11.71
11.76
NOTES:
1. Part can be built up from M3922/59-007 flange.
2. Unless otherwise specified, tolerance on all decimal dimensions to be ± .005.

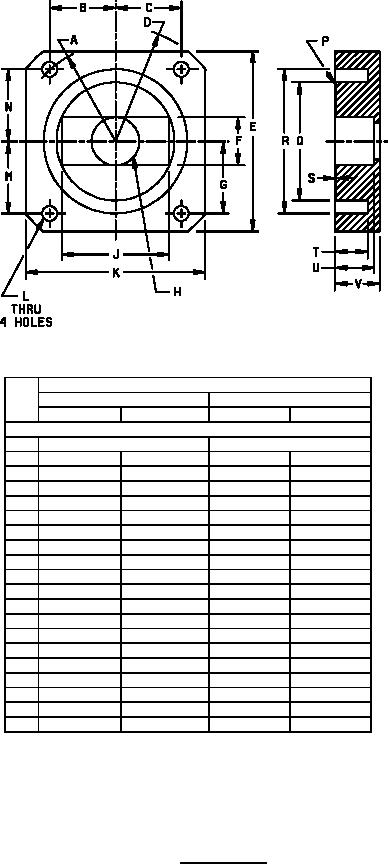

FIGURE 5. TR tube test part.
10
