MIL-PRF-1/999C
Dimensions
Ltr
Inches
mm
NOTES:
1. Internal dimensions of each socket same as detail of test mount "A".
Min
Max
Min
Max
2. Method of fabrication optional.
A
.799
.801
20.29
20.35
3. Suitable clamps shall be provided to insure proper contact of tubes in mount.
B
.122
.128
3.10
3.26
4. Matching IRIS for dimension C: .846 ±.003 inches (21.49 ±0.08 mm).
C
21.41
21.57
543.8
547.9

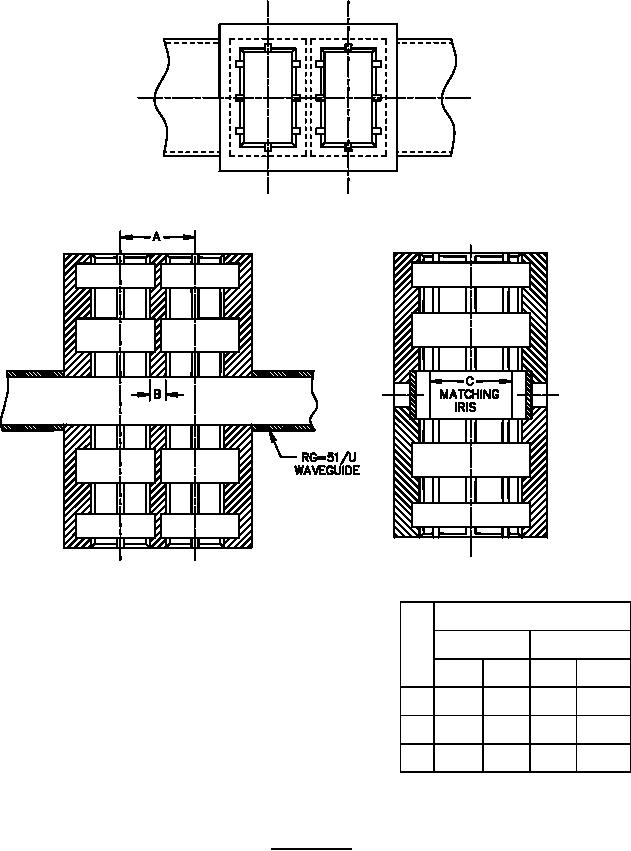

FIGURE 4. Test mount "B"
