MIL-PRF-1/160N
Dimensions
Inches
Millimeters
0.750
19.05
2.000
50.80
6.000
152.40
12.000
304.80
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are in parentheses.
3. Fisher-Governer pressure regulator model 67, or equal.
4. Fisher Porter flowrator model B4-27-10/77, or equal.
5. 12 inches (304.80 mm) cube inside dimensions, compound sealed, or equal.
6.
F. W . Dwyer manometer, 0 to 1 inch (25.40 mm) of water (Fisher Scientific Company 11-295-5 draft gage),
or equal.
7. Socket specified on drawing 246-JAN (contact preparing activity if help is needed to find JAN drawings).

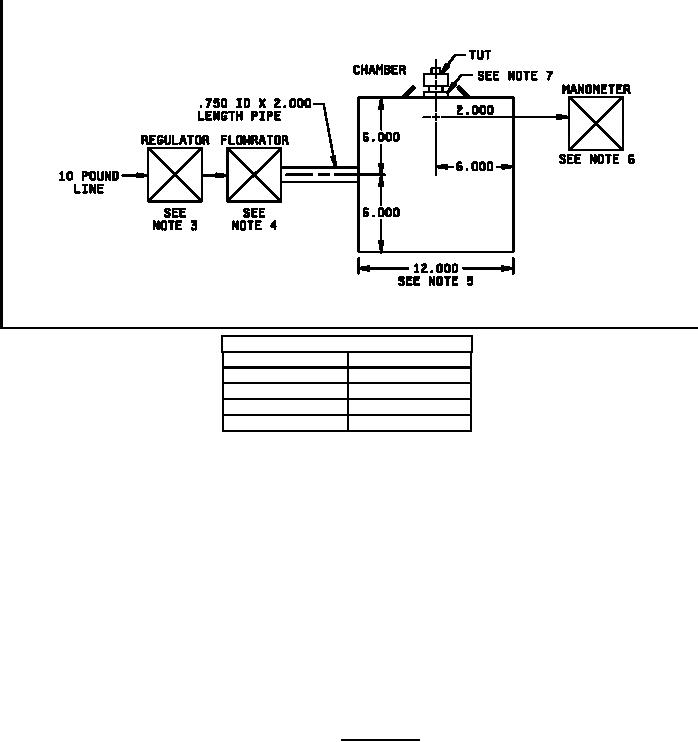

FIGURE 2. Block diagram.
