MIL-PRF-1/368G
Inches
mm
.010
0 0.25
.218
0 5.54
.221
0 5.61
.250
0 6.35
2.110
53.59
3.250
82.55
3.625
92.08
NOTES:
1.
Metric equivalents (to the nearest 0.01 mm) are given for general information only and are based upon
1 inch = 25.4 mm.
2.
Skirted miniature cap C1-3. Cap not to extend beyond edge of flange.
3.
Nickel plating or Rhodium flash over silver plating optional. If nickel plating is required, it is recommended that it be used only
when other platings cannot meet performance requirements. The surface, referenced in this note, shall meet and enable the
Gas Switching tube to meet all interface and performance requirements.
4.
Exhaust tube not to extend beyond edge of flange.
Unless otherwise specified, tolerance is .016 (0.41 mm).
5.

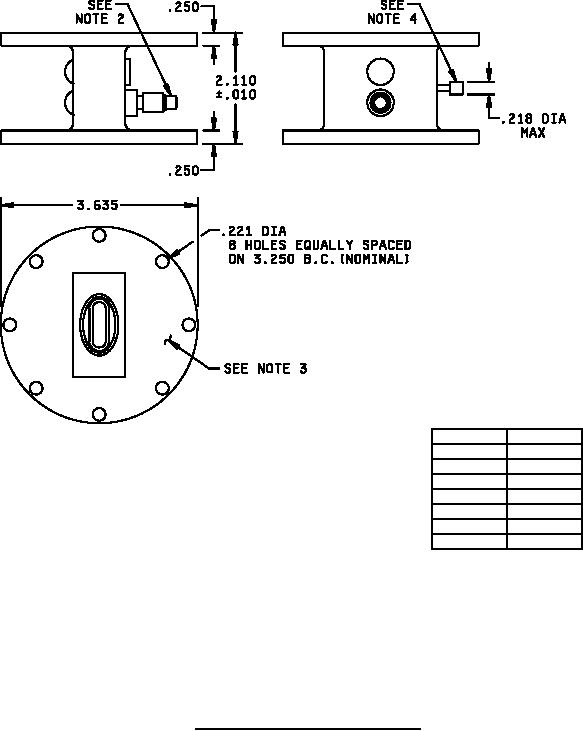

FIGURE 1. Outline drawing of electron tube type 5865.
4
