MIL-PRF-1/1635C
Element
Pin number
1
Accelerator
3&4
Deflecting electrode D1
5&6
Deflecting electrode D2
9
Focusing electrode
11 & 14
Heater & cathode
12 & 13
Grid number 1
15
Heater
18 & 19
Deflecting electrode D3
20 & 21
Deflecting electrode D4
NOTES:
1. Minimum useful screen diameter.
2. Metric equivalents are given for general information only
and are based upon 1.00 inch = 25.4 mm.
3. Reference dimensions are for information only and are not
required for inspection purposes.

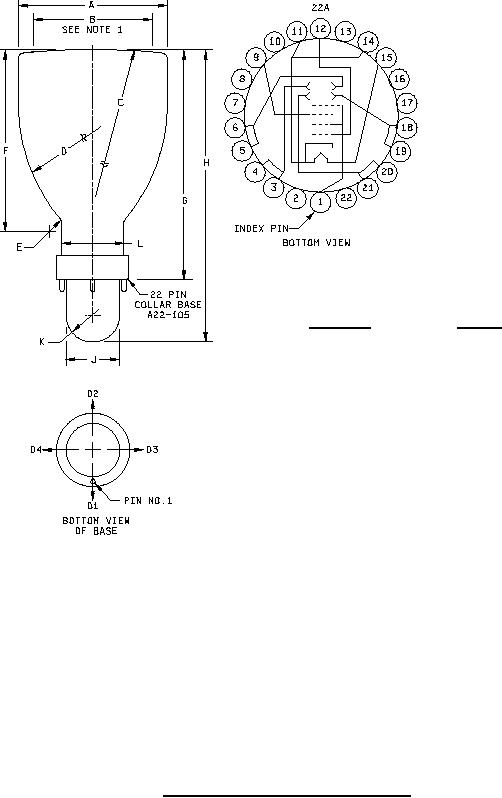

FIGURE 1. Outline drawing of electron tube type 10ALP19.
6
