MIL-PRF-1/1400D
PIN NUMBERS
Element
Unit A
Unit B
Unit C
Heater (common)
1
1
1
Heater (common)
15
15
15
Cathode
17
24
16
Focusing electrode
22
11
10
Accelerator (common)
7
7
7
Astigmatism adjustment electrode
6
20
19
Grid No. 1
2
14
25

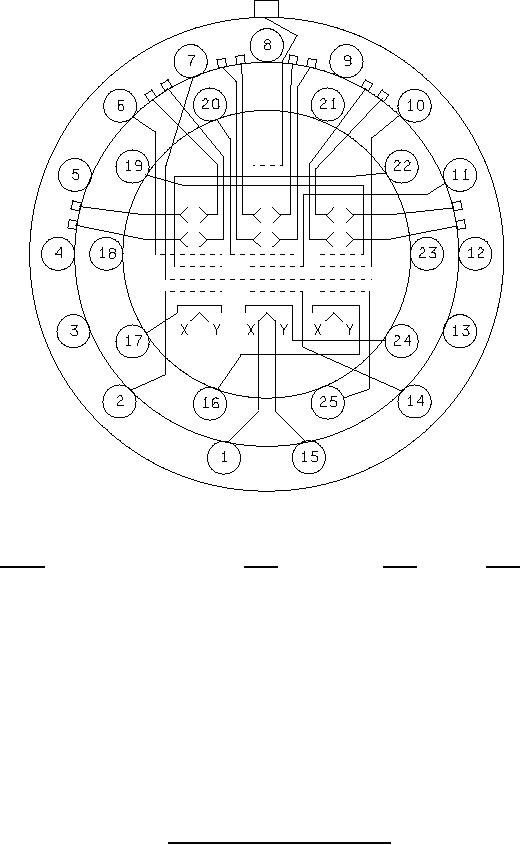

FIGURE 1. Outline dimensions of tube type 12ATP28 - Continued.
