MIL-PRF-1/943E
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
First Article inspection
C
1.688
---
42.88
---
E
3.000 R
76.20 R
F
0.150 R
3.81 R
Conformance inspection, part 2
A
5.375
5.875
136.53 149.23
B
4.625
5.125
117.48 130.18
D
1.938
2.063
49.23
52.40
NOTES:
1. Diameter C refers to the cathode diameter.
Centerline of bulb shall not deviate more than 2° in any direction from the perpendicular erected at center of bottom of
2.
base.
3.
The base shall be a medium shell diheptal 14-pin base, B14-38.

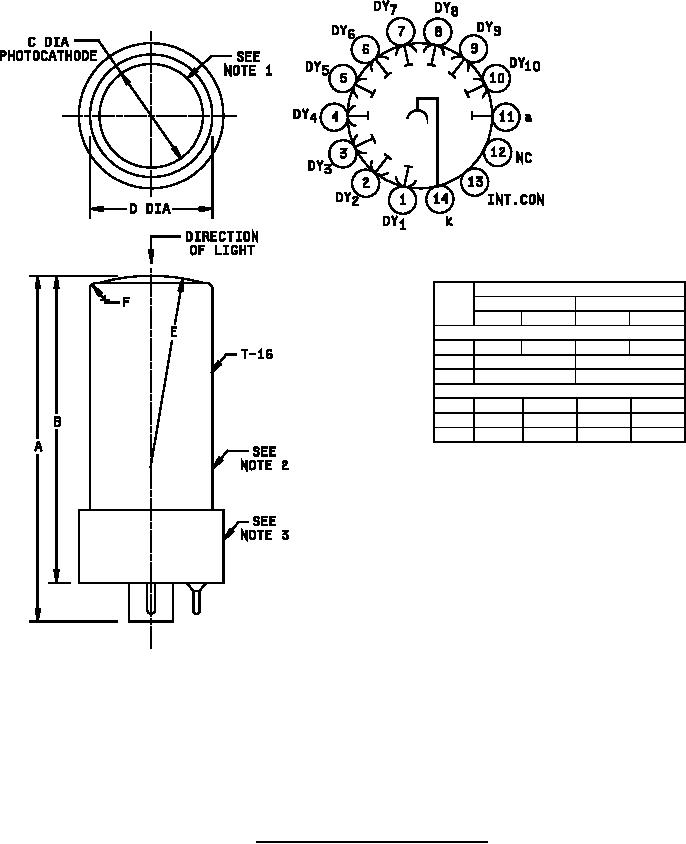

FIGURE 1. Outline drawing of electron tube types 5819.
6
