MIL-PRF-1/849G
Dimensions
Inches
Ltr
Millimeters
Min
Max
Min
Max
Conformance inspection, part 1 (see note 1)
D
3.625
92.08
E
3.438
87.33
F
2.521
2.541
64.03
64.54
G
1.875 DIA
47.63 DIA
H
2.425
61.60
J
3.203
81.36
L
.178
.258
4.52
6.55
M
.422
10.72
Q
2.771
2.791
70.38
70.89
Conformance inspection, part 2
BQ
.125
3.18
Reference dimensions
K
1.391
35.33
P
1.265
32.13
AH
.375 RAD
9.53 RAD

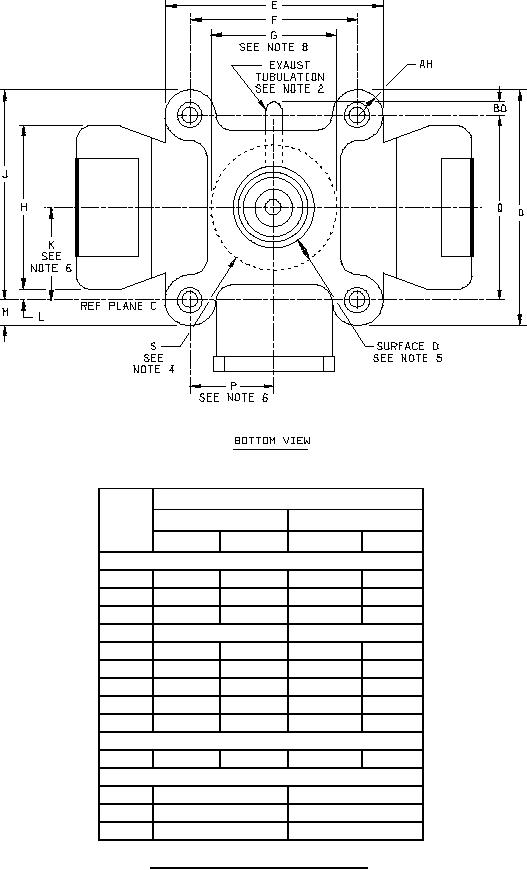

FIGURE 1. Outline drawing of electron tube type 6543 - Continued.
9
