MIL-PRF-1/796D
NOTES:
1. Dimensions are in inches.
2. Dimensions "E" and "J" pertain to flange.
3. Dimensions "K" and "L" pertain to outside of gasket.
4. Dimension "F" shall be measured prior to attachment of gasket.
5. Gasket to be securely mounted to tube.

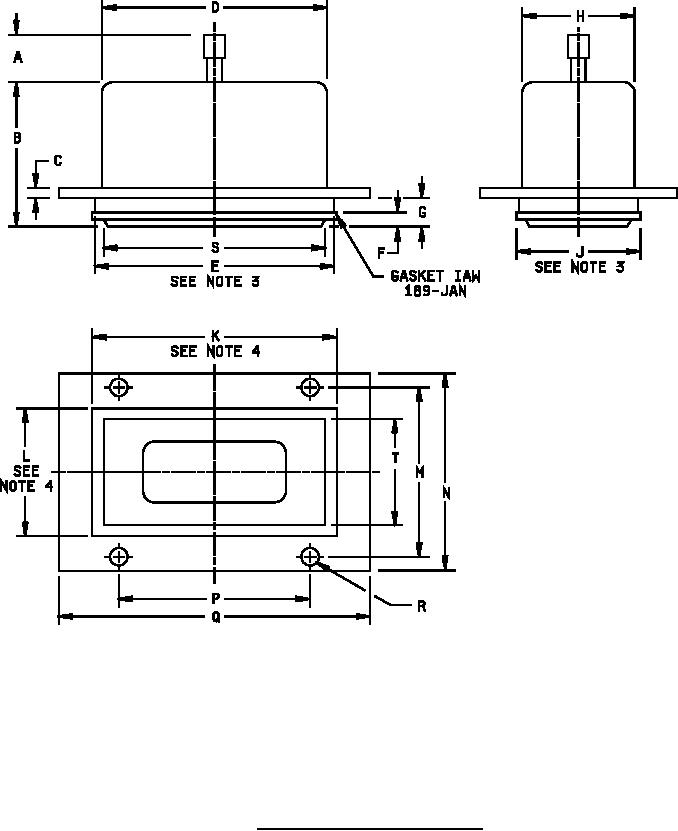

FIGURE 1. Outline drawing of electron tube type 6024.
