MIL-PRF-1/267G
Minimum
Maximum
Ltr
inch
mm
inch
mm
Qualification inspection
B
2.938
74.63
3.063
77.80
G
Base: B12-43 or B10-75
Conformance inspection, part 2
A
11.375 288.93
11.625
295.28
C
1.313
33.35
1.438
36.53
D
1.375
34.93 ---
---
Reference dimensions (see note 2)
E
4.563 111.90
H
0.063
1.60
J
0.563
14.30
NOTES:
1. Useful screen radius.
2. Reference dimensions are for information only and are not required for inspection purposes.

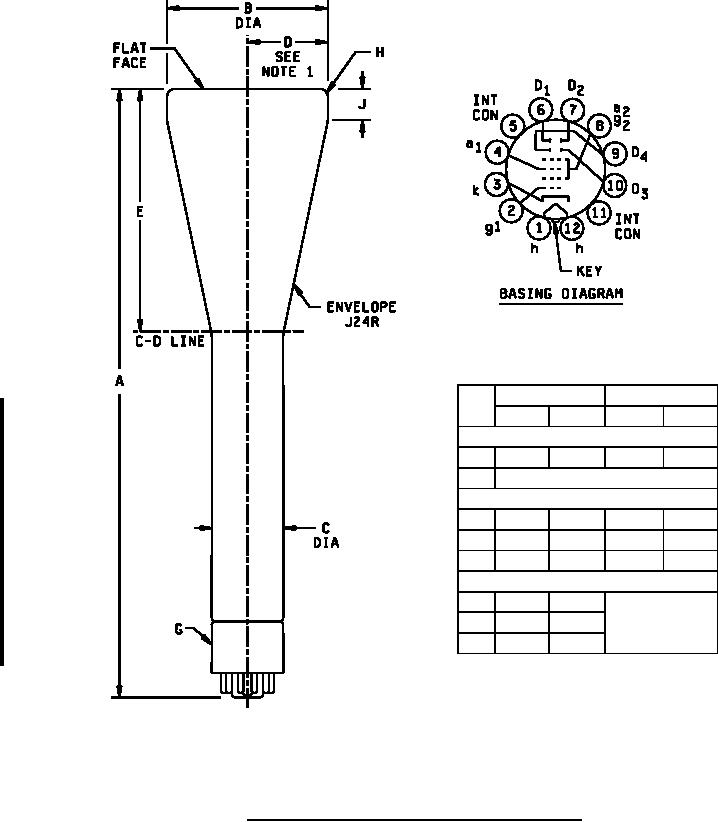

FIGURE 1. Outline drawing of electron tube types 3WP1 and 3WP2.
2
