MIL-PRF-1-211 Electron Tube, Power Type 3C24

Pages 1 - 2 - 3 - 4 - 5


MIL-PRF-1/211G
Pin connections
Pin no.
Elements
1
f
nc
2
nc
3
f
4
a
Anode lead
g
Grid lead

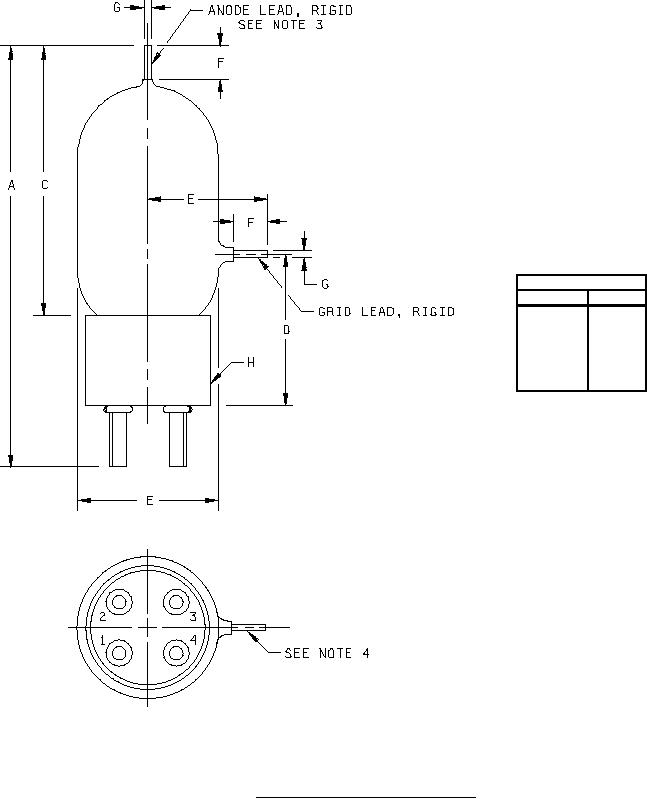

FIGURE 1. Outline drawing of electron tube type 3C24.
See notes at end of Figure I.
