MIL-PRF-1/208G
Figure I Notes. - Continued.
6. Contact disks shall be gold plated 10 MSI minimum or silver plated 15 MSI minimum on external surfaces.
7. Contact disks shall be concentric within 1/64 inch (0.40 mm).
8.
A screwdriver slot is provided in the head of the tuning screw and is exposed when knurled tuning knob is removed.
9. There shall be a perceptible clearance between the cone ends when the tuning screw is at its extreme inner position.
.

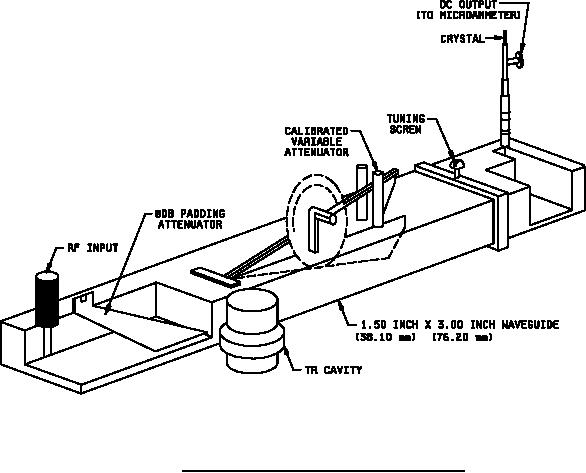

FIGURE 2. Equipment-intrinsic Q and tuning range measurements.
6
