MIL-PRF-1/1729E
FIGURE 2. High voltage test circuit.
Inches
mm
.0001
0.00
.0002
0.00
.0003
0.01
.005
0.13
.031
0.79
.200
5.08
.272
6.91
.315
8.00
.325
8.26
.500
12.70
.999
25.37
1.000
25.40
2.000
50.80
3.500
88.90

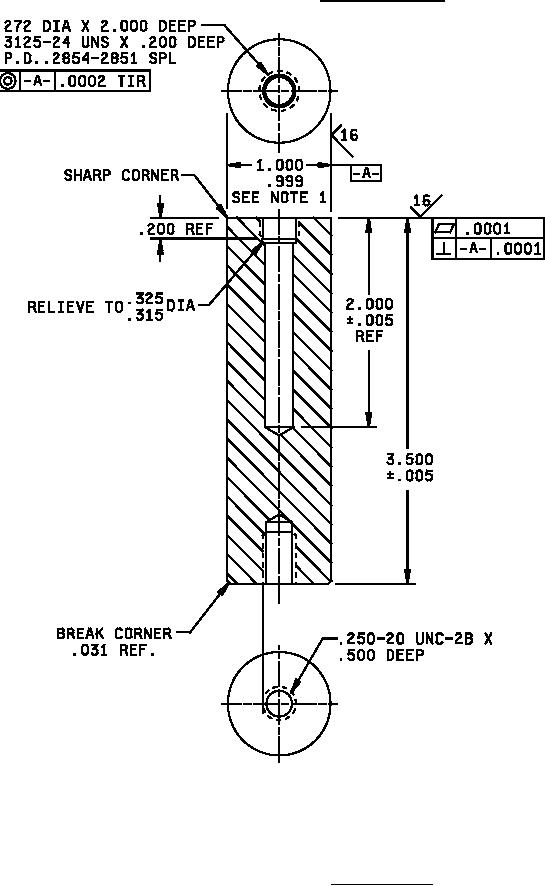

NOTES:
1. Overall diameter taper .0001 maximum.
2. This arbor, or equivalent, to be used to check concentricity of grid and cathode contact surfaces with reference to anode
pitch diameter (P.D.).
FIGURE 3. Check fixture arbor.
9
