MIL-PRF-1/1729E
Dimensions
Ltr
Inches
Millimeters
Notes
Min
Max
Min
Max
Conformance inspection, part 2
A
---
.960
---
24.38
B
---
.895
---
22.73
C
.702
.740
17.83
18.80
D
.655
.684
16.64
17.37
E
.825
.875
20.96
22.23
F
.537
.554
13.64
14.07
R
.935
.950
23.75
24.13
1, 8, 11
T
.440
.460
11.18
11.68
1, 4, 11
U
.595
.607
15.11
15.42
1, 9, 11
W
.235
.265
5.97
6.73
1, 4, 11
Conformance inspection, part 3
10
G
---
.055
---
1.40
H
---
.200
---
5.08
J
.150
.190
3.81
4.83
L
---
.260
---
6.60
M
.545
.570
13.84
14.48
P
.775
.785
19.68
19.94
X
---
.340
---
8.64

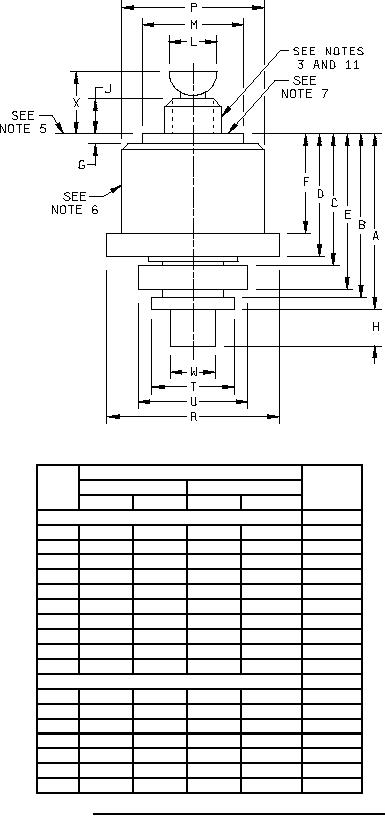

FIGURE 1A. Alternate outline drawing of electronic tube type 8538B.
