MIL-PRF-1/1717C
NOTE: When type 8906 tubes being tested in this document have been made in the same production run as the
JAN-7815 tubes and the listed dimensions are identical, then the one sample may represent both types.

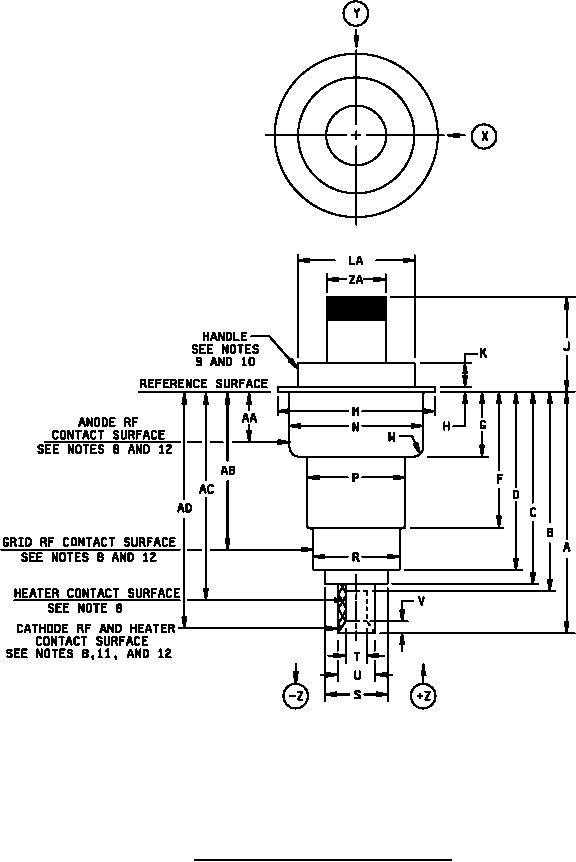

FIGURE 1. Outline drawing of electron tube type 8906.
6
