MIL-PRF-1/1660C
Dimensions
Ltr
Inches
Millimeters
Nominal
Nominal
A
6.97
177.04
B
5.72
145.29
C
4.72
119.89
D
4.56
115.82
E
2.50 O.D.
63.50 O.D.
F
1.56
39.62
G
.62
15.75
H
1.25 O.D.
31.75 O.D.
J
1.88
47.75
K
No. 4-40 NC-2B
No. 4-40 NC-2B
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest .01 mm) are given for general
information only and are based upon 1 inch = 25.4 mm.
3. Unless otherwise specified, tolerance is ± .02 inch (0.51 mm).
4. All dimensions are for reference only.

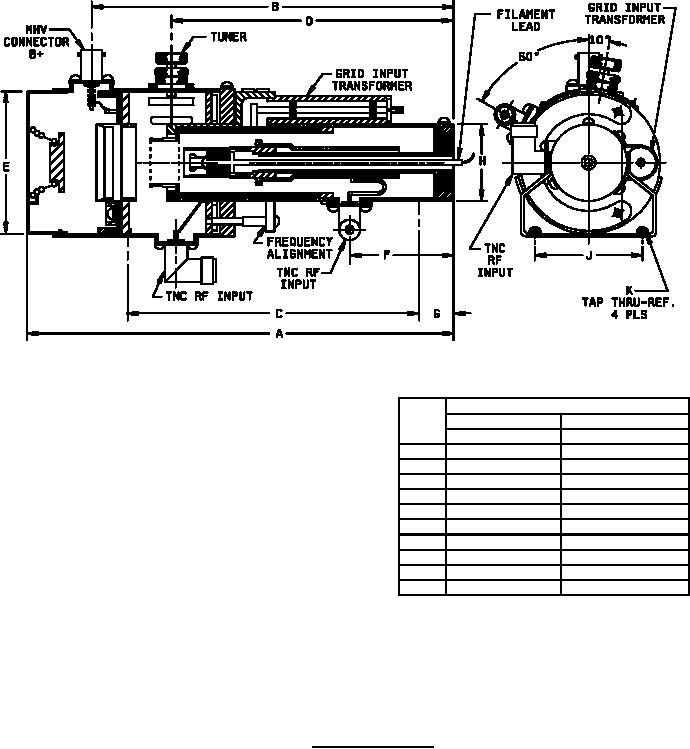

FIGURE 4. Pulse amplifier cavity.
9
