MIL-PRF-1/1609C
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
Conformance inspection, part 2
A
---
.750
---
19.05
C
---
2.750
---
69.85
D
---
2.500
---
63.50
Reference dimensions
B
Cap: C1-3 (EIA)
E
Base: E7-1 (EIA)

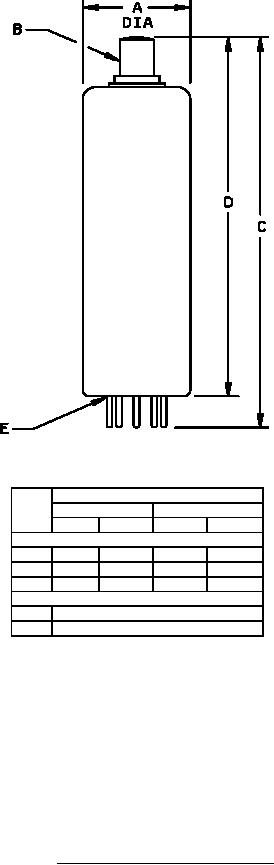

FIGURE 1. Outline drawing of electron tube type 8515.
