MIL-PRF-1/1392D
NOTE: All dimensions are in inches.
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
2.873 DIA
2.877 DIA
72.97 DIA
73.07 DIA
B
1.539 DIA
1.549 DIA
39.09 DIA
39.34 DIA
C
1.432 DIA
1.442 DIA
36.37 DIA
36.63 DIA
25°15'
25°45'
25°15'
25°45'
D
40°15'
40°45'
40°15'
40°45'
E
F
.438 R
.562 R
11.12 R
14.27 R
G
.621
.625
15.77
15.87
H
1.186
1.190
30.12
30.23
J
.025 R
.087 R
0.63 R
2.21 R
K
1.998 DIA
2.002 DIA
50.75 DIA
50.85 DIA

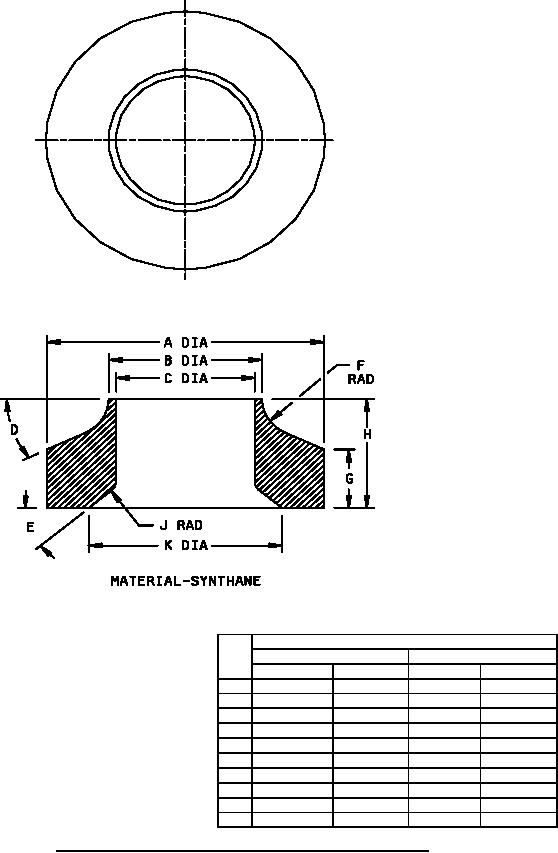

FIGURE 2. Neck shadow test standard deflection yoke spacer (5FP14A and 5FP7A).
8
