MIL-PRF-1/1371J
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
3.846
3.876
97.69
98.45
B
.844
.868
21.44
22.05
C
1.926
1.936
48.92
49.17
D
.423
.433
10.74
11.00
Reference Dimensions
E
---
.219 DIA
---
5.56 DIA
F
---
3.062 DIA
---
77.77 DIA

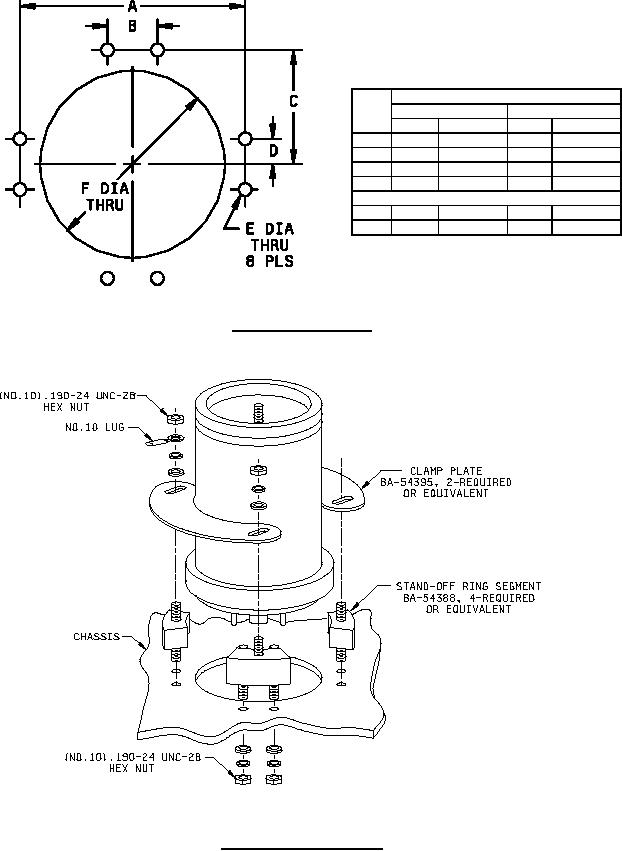

FIGURE 2. Mounting hole dimensions.
FIGURE 3. MT-4 tube mounting assembly.
