MIL-PRF-1/1335H
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
Conformance inspection, part 1
A
.316
.330
8.03
8.38
B
.046
.052
1.17
1.32
E
.096
.104
2.44
2.64
J
.020
.026
0.51
0.66
L
.429
.459
10.90
11.66
M
.460
.490
11.68
12.45
Conformance inspection, part 2
C
.023
.031
0.58
0.79
D
.018
.026
0.46
0.66
F
.190
.210
4.83
5.33
K
.100
.110
2.54
2.79
Reference dimensions
G
.300
7.62
H
.040
1.02
N
.020
0.51
P
.012
0.30
NOTE: All terminals shall be so aligned that they are capable of being inserted into a gauge .125 inch (3.17 mm) thick having
5 holes .062 inch (1.57 mm) ± .001 (0.03 mm) in diameter as shown on figure 2.

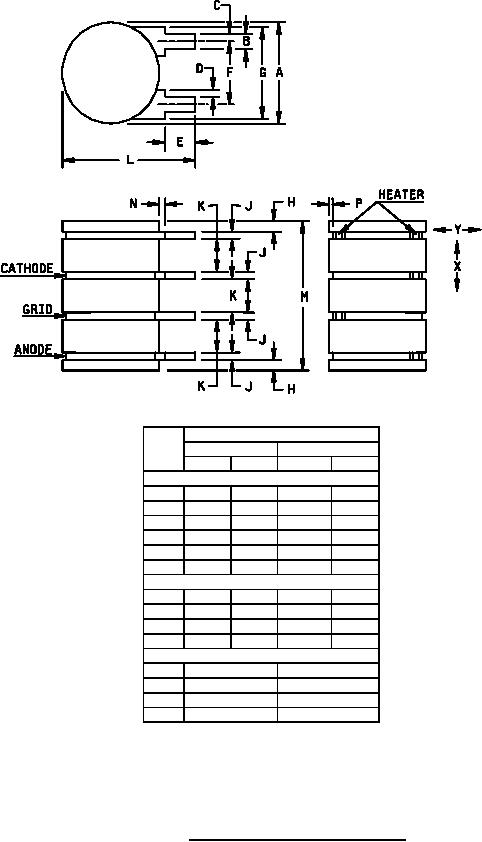

FIGURE 1. Outline drawing of electron tube type 7462.
6
