MIL-PRF-1/1314D
Dimensions
Ltr
Inches
Millimeters
Ltr
Inches
Millimeters
Min
Max
Min
Max
Min
Max
Min
Max
Conformance inspection, part 2
A
3.297
3.453
83.74
87.71
M
.063
.125
1.60
3.18
B
2.303
2.323
58.50
59.00
N
.250
---
6.35
---
C
2.921
3.047
74.19
77.39
P
1.063
1.125
27.00
28.58
D
1.672
1.765
42.47
44.83
R
.250
.313
6.35
7.95
E
2.271
2.291
57.68
58.19
S
.281
.312
7.14
7.92
F
2.115
2.135
53.72
54.23
T
.109
.141
2.77
3.58
G
1.302
1.322
33.07
33.58
U
1.615
1.635
41.02
41.53
H
.320
.328
8.13
8.33
V
.500
.625
12.70
15.88
J
.181
.191
4.60
4.85
W
.063
---
1.60
---
K
.375
---
9.53
---
X
.256
.276
6.50
7.01
L
.188
---
4.78
---
Y
---
.047
---
1.19
NOTES:
1. Metric equivalents (to the nearest .01 mm) are given for general information only and are based upon
1 inch = 25.4 mm.
2. Bottom of cup must not be used as a socket stop.

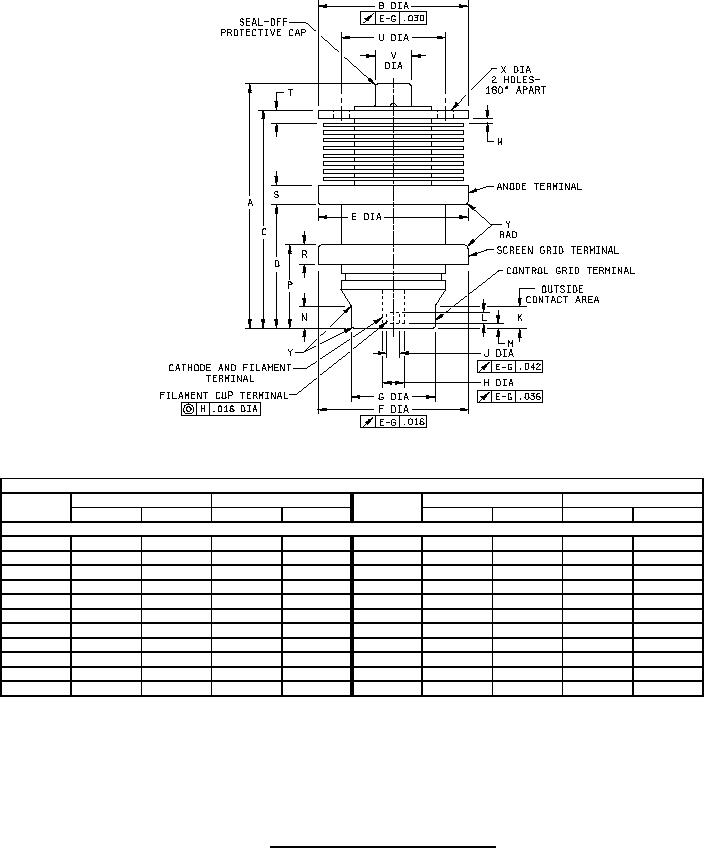

FIGURE 2. Outline drawing of electron tube type 8500.
