MIL-PRF-1/1298E
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
Conformance inspection, part 2
A
---
4.500
---
114.30
Conformance inspection, part 3
(see 6/ in table I)
B
---
1.190
---
30.23
C
---
3.875
---
98.43
D
2.031
2.219 51.59
56.36
E
.625
---
15.88
---
F
.812
---
20.62
---
G
Cap: C1-1
H
Base: A4-5 or A4-26 (see note 3)
NOTES:
1. Dimensions D, E, and F apply to usable cathode area.
2. For pin alignment, use gauge GA4-1.
3. Dimension D locates centerline of cathode.

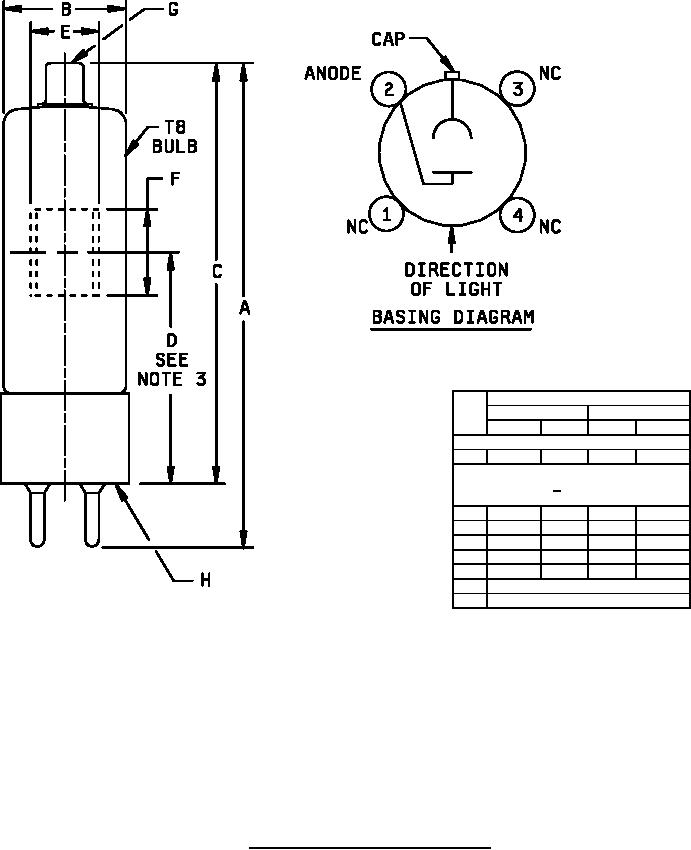

FIGURE 1. Outline drawing of electron tube type CE-75V.
3
