MIL-PRF-1/1100G
Dimensions
Ltr
Inches
Millimeters
Conformance inspection, part 2
Min
Max
Min
Max
A
11.500
12.500
292.10
317.50
B
-----
3.313
-----
84.15
C
-----
7.000
-----
177.80
E
0.559
0.573
14.20
14.55
G
Base: A5-98 (modified)
NOTE: Five (5) pins are correct for 5949A and 5949A-1. The four (4) slots are for stress relief when epoxied to
5949A glass thyratron. "Modified" indicates the slots are replaced by through holes for screw fastening to metal-
ceramic 5949A-1 thyratron. This difference is transparent to the end-user.

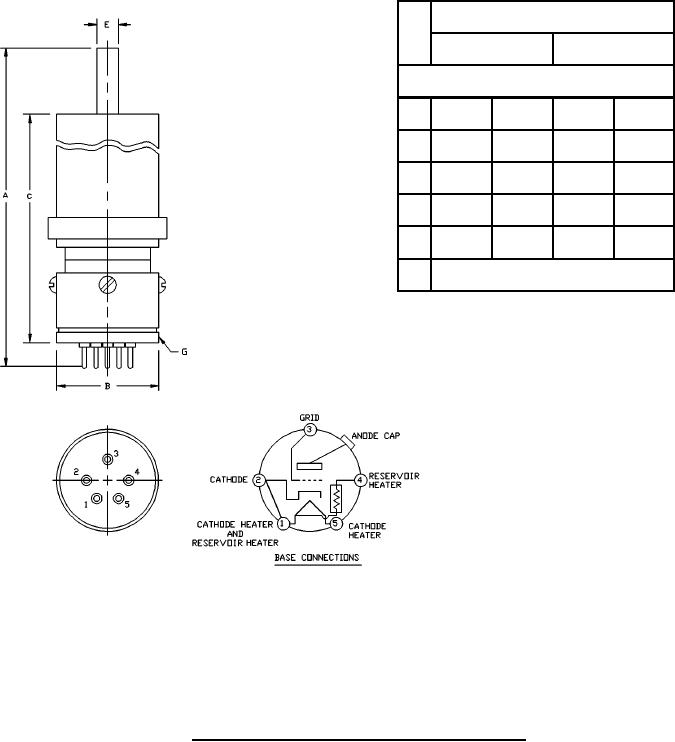

FIGURE 2. Outline drawing of electron tube type 5948A-1 (ceramic).
Referenced documents. In addition to MIL-PRF-1, this document references the following:
MIL-STD-1311.
Changes from previous issue: Marginal notations are not used in this revision to identify changes with respect to the
previous issue due to the extent of the changes.
