MIL-PRF-1/1065G
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
Conformance inspection, part 2
A
6.750
7.250
171.45
184.15
C
.810 DIA
.896 DIA
20.57 DIA
22.76 DIA
D
2.125 R
---
53.98 R
---
P
.938
1.062
23.83
26.97
Q
.188
.250
4.78
6.35
R
.563
.813
14.30
20.65
Qualification inspection
B
4.900 DIA
5.000 DIA
124.46 DIA 127.00 DIA
E
2.750
2.875
69.85
73.03
G
Base: E9-37 (EIA)
S
Bulb contact: J1-22 (EIA)
Reference dimensions (see note 1)
F
24.000 R
609.60 R
K
9.660 R
245.36 R
L
.125 R
3.18 R
M
.125 R
3.18 R
2
2
J
NOTES:
1. These dimensions are for information only and are not required for inspection purposes.
2. Useful screen.
3. Determined by point where leading edge of JEDEC reference line gauge G123 will stop.
4. External conductive coating shall be tied to cathode potential (by external application circuitry).

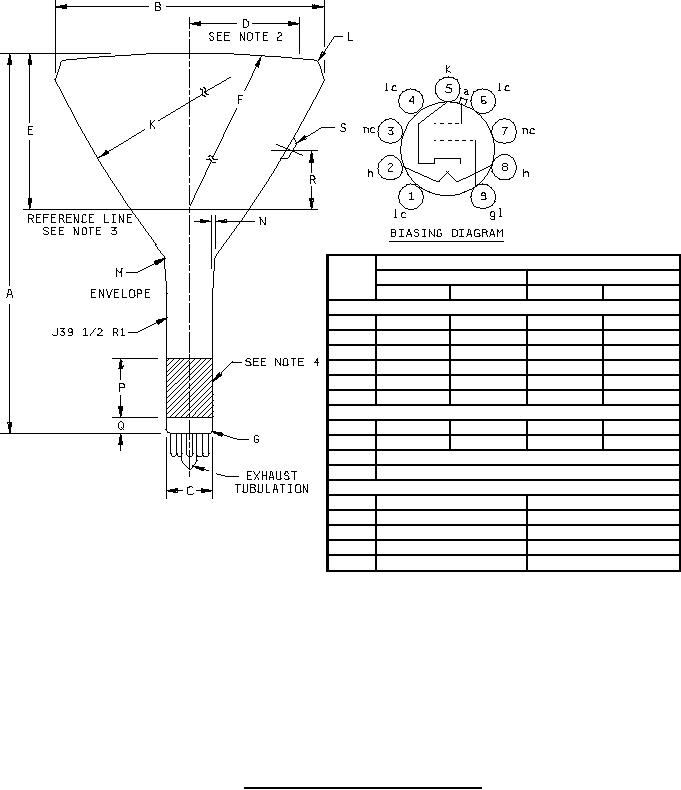

FIGURE 1. Outline drawing of electron tube type 5BCP7.
5
