MIL-PRF-1/924H
Ltr
Dimensions in inches with metric
equivalents (min) in parentheses
Minimum
Maximum
conformance inspection, part 1
A
5.375 (136.53)
C
4.813 (122.25)
D
1.688 (42.88)
1.813 (46.05)
Conformance inspection, part 3
(See Note a)
B
2.063 (52.40)
E
.875 (22.23)
F
1.625 (41.28)
NOTE a: These dimensions shall be
checked annually.

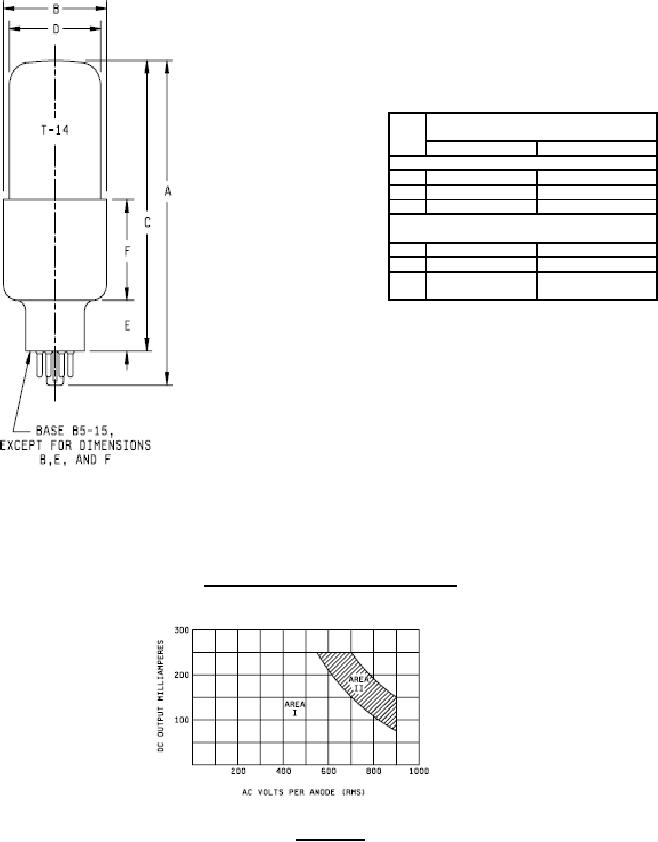

FIGURE 1. Outline drawing of electron tube type 5R4WGB.
FIGURE 2. Rating chart.
