MIL-PRF-1/846M
NOTES:
1. Tubes to be supplied with four magnetic shunts. Shunts may be removed as needed to establish various
operating points.
2.

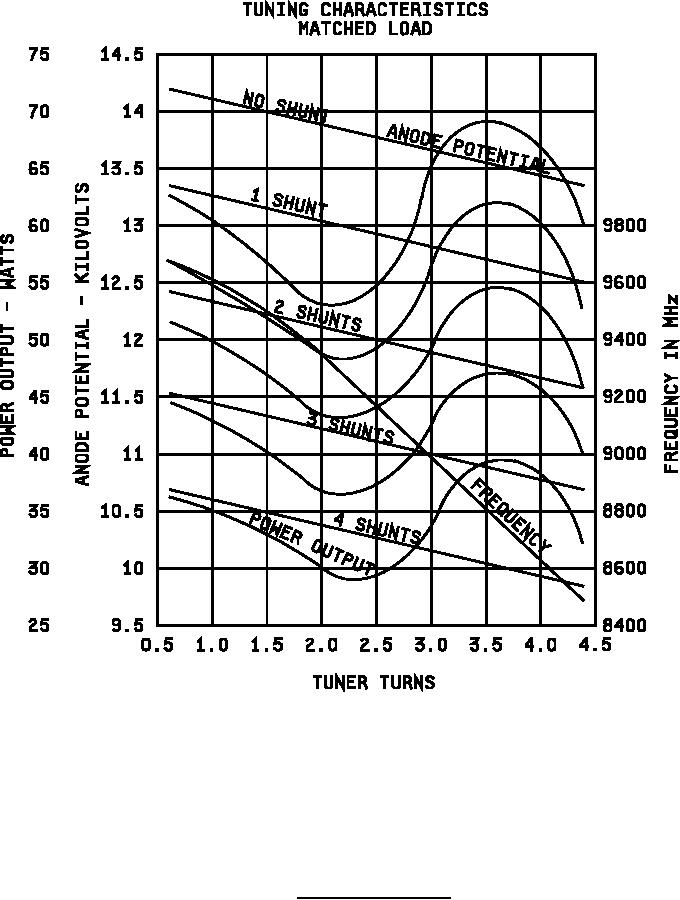

The chart reveals the manner in which frequency, power output, and anode voltage vary with tuner position for
five different gauss levels with a pulse repetition rate of 1,000 pps, a current pulse width of 1.0 microsecond,
and a peak anode current of 14 amperes.
FIGURE 2. Frequency characteristics.
