MIL-PRF-1/592C
Dimensions
Ltr
Inches
Millimeter
Min
Max
Min
Max
Conformance inspection, part 2
A
5.188
5.312
131.78
134.92
B
See note a
C
1.562
1.688
39.67
42.88
D
16.375
17.125
415.93
434.98
Reference dimensions (see note 4)
E
16.188
411.18
F
10.250
260.35
J
8.000 R
203.20 R
K
.500 R
12.70 R
L
.808
20.52
NOTES:
1. The minimum useful screen radius shall not be less than
2.25 inches (57.15 mm).
2. The base for 5BP1A shall be a large wafer magnal 11-pin
with medium straight sleeve (B11-35) type, or medium
magnal 11-pin shell type (B11-66). The base for the 5HP1A
shall be a large micanol-wafer magnal 11-pin with medium
straight sleeve (B11-35) type, or medium magnal 11-pin low-loss
shell type(B11-66).
3. The bulb shall be a J42C type.
4. Reference dimensions are for information only and are not
required for inspection purposes.

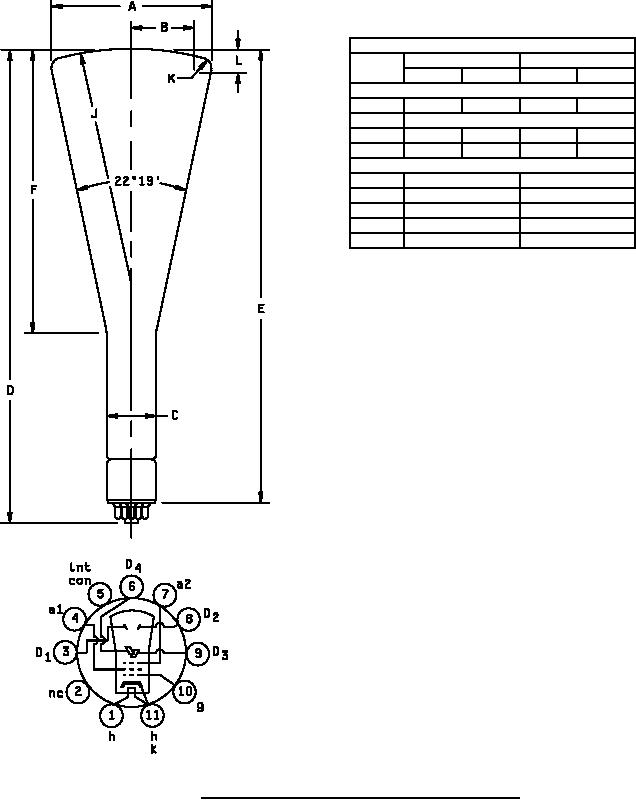

FIGURE 1. Outline drawing for electron tube types 5BP1A and 5BHP1A.
5
