MIL-PRF-1/588B
Dimensions
Ltr
Inches
Millimeter
Min
Max
Min
Max
Conformance inspection, part 2
A
1.937
2.063
49.20
52.40
B
Note 1
C
1.312
1.438
33.32
36.53
D
7.250
7.626
184.15 193.70
Reference dimensions (see note 4)
E
6.875
174.63
F
3.062
77.77
J
8.000 (203.20) R
K
.188
(4.78) R
N
.225
(5.72)
Z
12 37'
NOTES:
1. The minimum useful screen radius shall not be less than .875 inches (22.23 mm).
2. The base shall be a large wafer magnal 11-pin, with flared sleeve, (B11-36) type or a small magnal 11-pin
(B11-33) type.
3. The bulb shall be a J16A type.
4. Reference dimensions are for information only and are not required for inspection purposes.

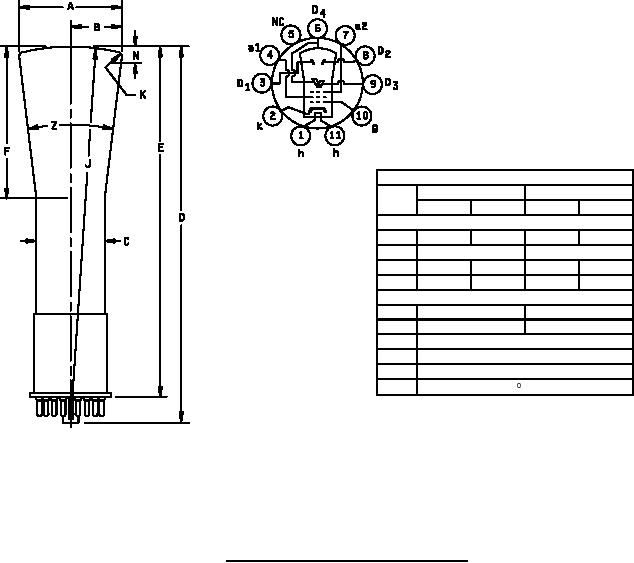

FIGURE 1. Outline drawing for electron tube type 2AP1A.
Custodians:
Preparing activity:
Army - CR
DLA - CC
Navy - EC
Air Force - 11
(Project 5960-3472)
Review activities:
Navy - MC
5
