Pulse anode current (ib) capability is dependent on pulse length (tp) and duty factor (Du). Maximum ib for a given
Du
tp is shown; maximum Du may then be derived from the relationship: 0.25 = ib

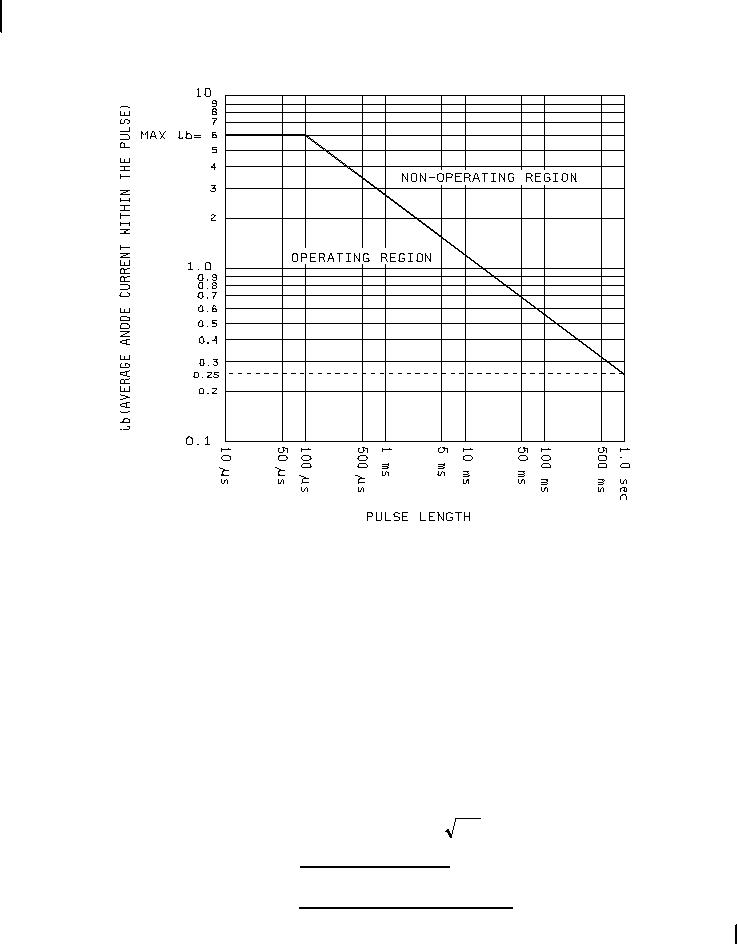

PULSE DERATING CHART
FIGURE 2. Pulse anode current versus pulse length.
