MIL-PRF-1/1753C
Ltr
Dimensions
Millimeters
Inches
Inspection
Min
Max
Min
Max
G
95.76
98.30
3.770
3.870
N
36.30
38.63
1.429
1.521
S
210.82
8.300
U
36.93
39.27
1.454
1.546
Y
15.32
15.67
.603
.617
AD
3.96
.156
AE
14.27
.562
AH
37.34
37.59
1.470
1.478
AK
34.24
34.44
1.348
1.356
Conformance inspection, part 1
F
36.30
38.63
1.429
1.521
J
45.42
47.75
1.788
1.880
K
6.35
.250
L
65.05
69.77
2.561
2.747
M
30.18
33.32
1.188
1.312
P
74.68
75.18
2.940
2.960
V
75.95
76.45
2.990
3.010
X
20.96
21.29
.825
.838
AM
47.24
48.01
1.860
1.890
AN
47.24
48.01
1.860
1.890
Conformance inspection, part 2
T
7.01
7.26
.276
.286
W
26.97
28.55
1.062
1.124
Z
13.51
13.84
.532
.545
AA
5.94
6.76
.234
.266
AB
4.17
4.42
.164
.174
AC
2.92
3.43
.115
.135
AF
19.05
.750
AG
3.18
4.75
.125
.187
Nominal
A
151.13
5.950
B
11.10
.437
C
20.83
.820
D
20.83
.820
E
95.25
3.750
H
50.80
2.000
R
68.25
2.687
AJ
4.17
.164

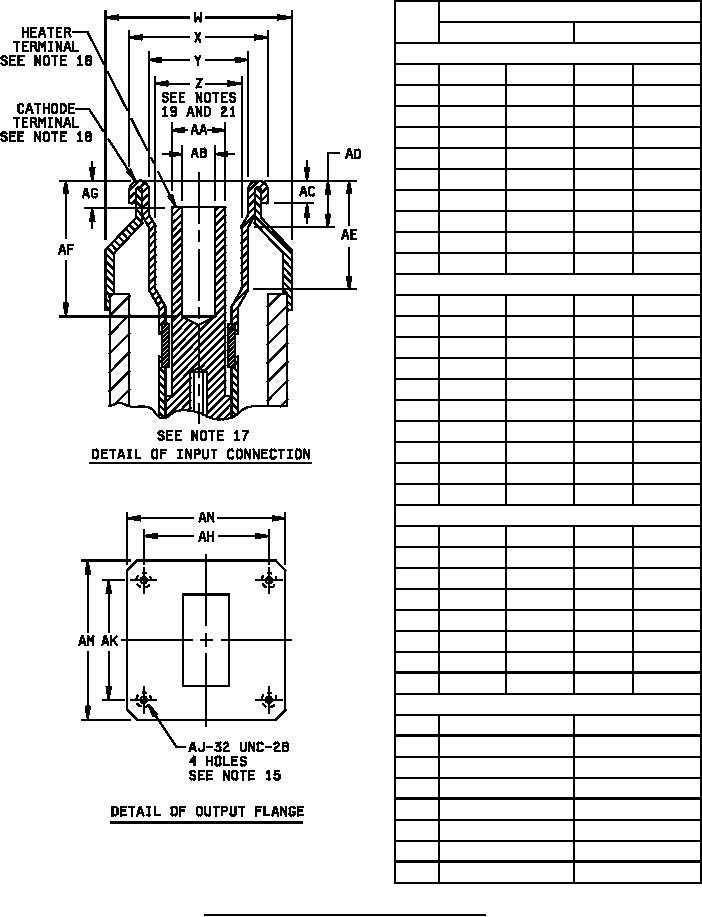

FIGURE 1. Outline drawing of electron tube type DOD-031 - Continued.
