MIL-PRF-1/1734C
NOTES:
1. Mate with UG-541A/U waveguide.
2. Measure temperatures at these points.
3. Mates with connector TI 518609 (Jettron 9000-C) or equal.
4. Ceramic type output window.

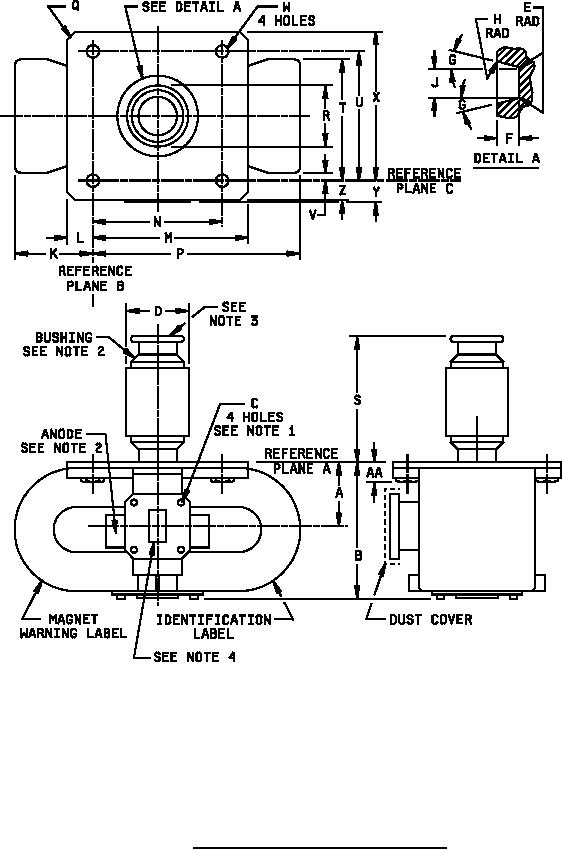

FIGURE 2. Outline drawing of electron tube type 8943.
6
