MIL-PRF-1/1698D
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
Conformance inspection, part 2
A
---
2.375
---
60.32
B
.334
.354
8.48
8.99
C
.245
.255
6.22
6.48
D
.250
---
6.35
---
E
1.344
1.468
34.14
37.29
F
.250
---
6.35
---
NOTE: Provision must be made to hold the anode wire concentric to the cathode at
each end of the cathode. Anode wire is continuously maintained in tension.

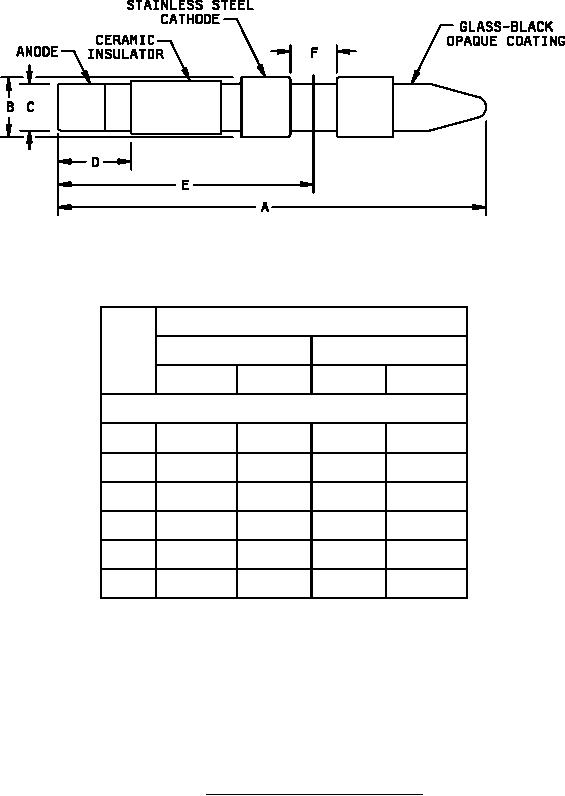

FIGURE 1. Outline drawing of electron tube type 7301.
