MIL-PRF-1/1688C
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
#10-32 flat head
#10-32 flat head screw-
screw-brass
brass
B
---
.03
---
0.8
C
.125 REF
3.18 REF
D
1.795
1.805
45.59
45.85
E
1.63 (TYP) DIA
41.40 (TYP) DIA
F
1.920
1.930
48.77
49.02
G
#10-32 Flat head
#10-32 Flat head
screw-steel (3 places)
screw-steel (3 places)
H
2.25 (TYP) DIA
57.15 (TYP) DIA
J
.312 DIA Hole CSK
7.92 DIA Hole CSK
K
---
.786
---
19.96
L
---
2.000
---
50.80
NOTE: Dimensions are in inches. Metric equivalent values are provided for information only and is based upon 1 in. = 25.4 mm.
Unless otherwise specified, tolerances are 0.03.

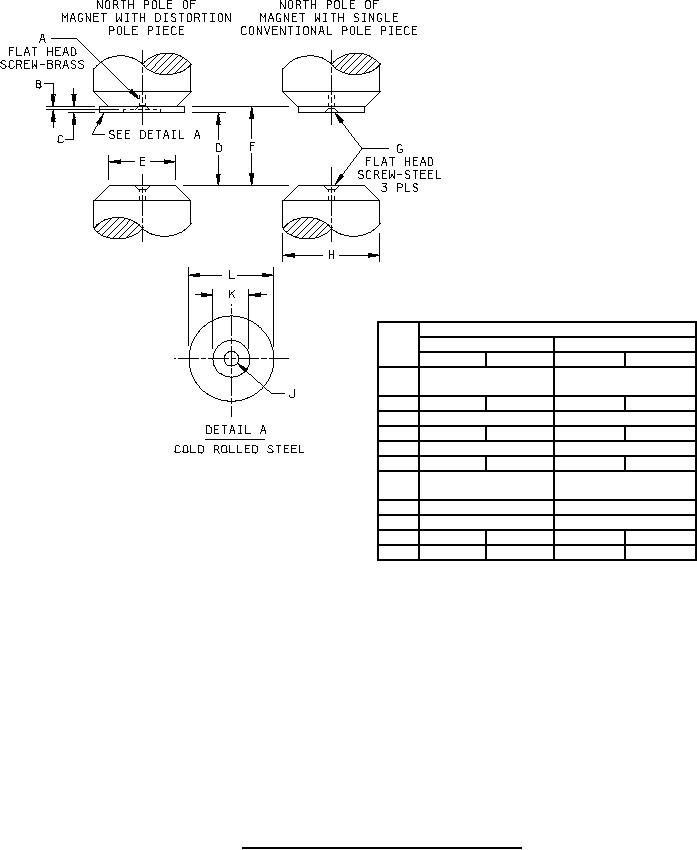

FIGURE 2. Magnetic field calibrators for electron tube type 8798.
