MIL-PRF-1/1677B
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
B
---
.040 wide
---
1.02 wide
---
.070 deep
---
1.78 deep
C
---
1.5
---
38.10
D
8.0
8.5
203.2
215.9
E
.250
.312
6.35
7.92
F
.185
.187
4.70
4.75
G
1.125
1.250
28.58
31.75
H
.478 Nom
12.14 Nom
J
---
3.25
---
83.55
(NOT TO SCALE)

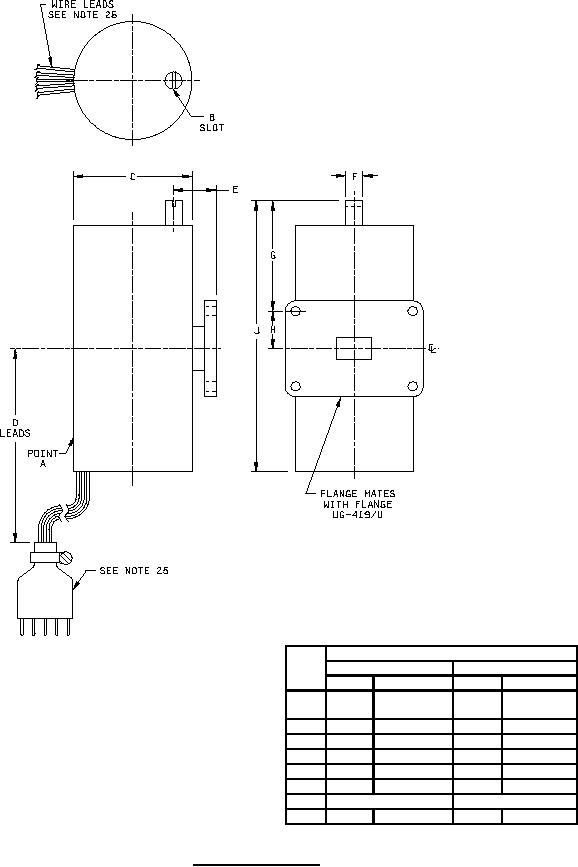

FIGURE 1. Outline and dimensions.
7
