MIL-PRF-1/1658C
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
3.812
3.814
96.82
96.88
B
3.187
3.189
80.95
81.00
C
.2765
.2775
7.02
7.05
D
---
9.00 DIA
---
228.6 DIA
Nom
Nom
E
.296
.328
7.52
8.33
F
---
.250
---
6.35
G
88°
92°
88°
92°
NOTES:
1.
Dimensions are in inches.
2.
Metric equivalents (to the nearest 0.01 mm) are given for general
information only and are based upon 1 inch = 25.4 mm.

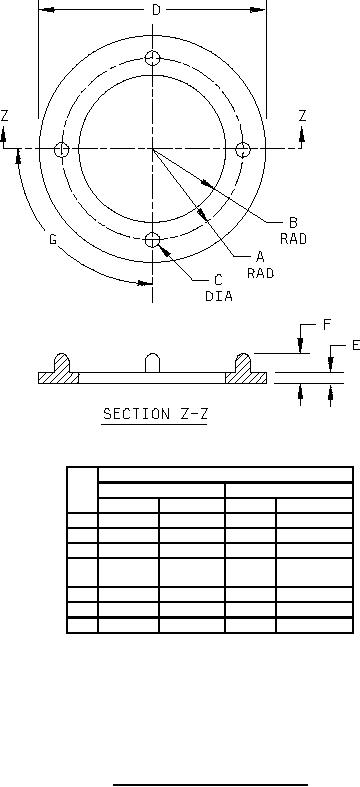

FIGURE 3. Base gage for electron tube type 8789.
