MIL-PRF-1/1623C
Ltr
Dimensions
Inches
Millimeters
Min
Max
Min
Max
Conformance inspection, part 1 (see note)
A
----
17.88
----
454.15
B
3.59
3.65
91.19
92.71
C
7.78
7.84
197.61
199.14
D
4.19
4.31
106.43
109.47
E
7.48
7.98
189.99
202.69
F
4.03
5.03
102.36
127.76
G
0.56
0.68
14.22
17.27
H
0.36
0.48
9.14
12.19
J
1.97
2.03
50.04
51.56
K
3.36
3.40
85.34
86.36
L
----
3.88
----
98.55
M
----
4.82
----
122.43
N
1.63
1.87
41.40
47.50
NOTE: Unless otherwise specified, the acceptance level for all tests listed under conformance inspection, part 1, shall be 1.0,
inspection level II.

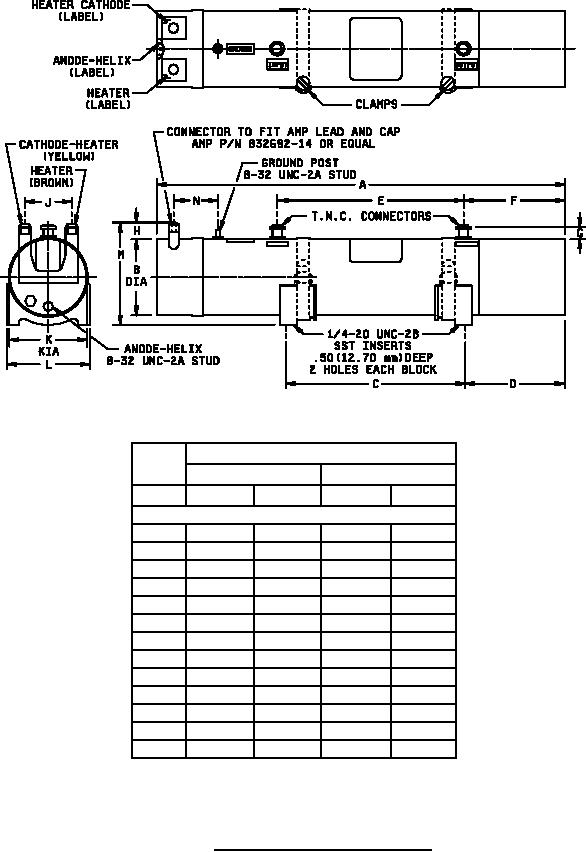

FIGURE 1. Outline drawing of electron tube type 8175 .
