MIL-PRF-1/1388G
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
Conformance inspection, part 2
A
---
4.50
---
114.3
B
1.367
1.385
34.72
35.18
D
2.610
2.640
66.29
67.06
Conformance inspection, part 3
(see note)
F
Base: A4-9 (EIA)
Reference dimensions
C
1.125
28.58
E
.031
0.79
NOTE: Reference dimension C is the effective mica window diameter.

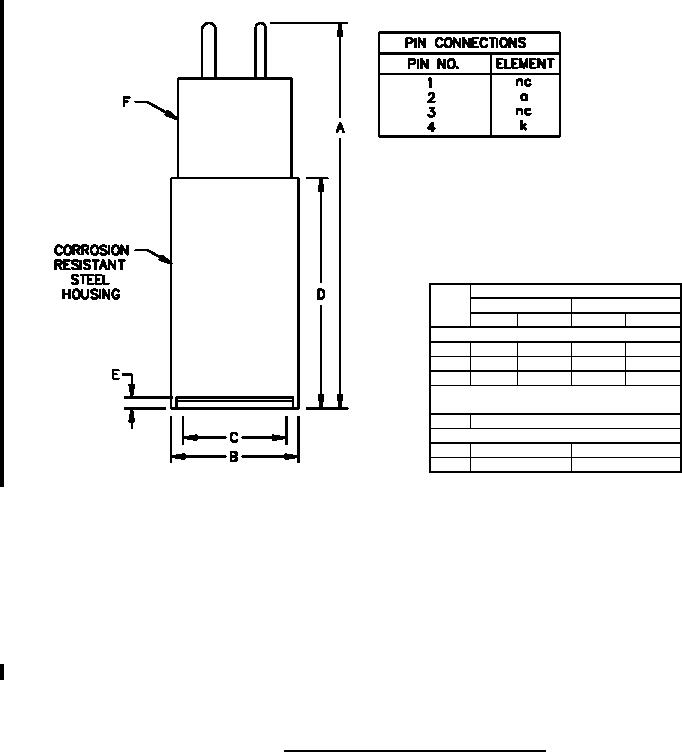

FIGURE 1. Outline drawing of electron tube types 7840.
