MIL-PRF-1/1147C
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
8.187
8.594
207.95
218.29
B
5.750
---
146.05
---
C
---
.875
---
22.23
D
.555 DIA
.565 DIA
14.10 DIA
14.35 DIA
E
.260
.325
6.60
8.26
F
.550 DIA
.560 DIA
13.97 DIA
14.22 DIA
G
.135 DIA
.145 DIA
3.43 DIA
3.68 DIA
H
.187 REF
4.75 REF
J
.090 DIA
.105 DIA
2.29 DIA
2.67 DIA
NOTES:
1. All dimensions are in inches, with metric equivalent.
2. Tubes must pass through gauge .585 DIA and 9 inches
long.
3. Planes of pins to be approximately parallel on both
ends of tube.
4. Includes solder and wire.
5. Outer circle indicates maximum excursion of pin
including variations in center to center spacing,
pin diameter and tilt. Reference dimension is center
to center of .140 inch diameter circles.

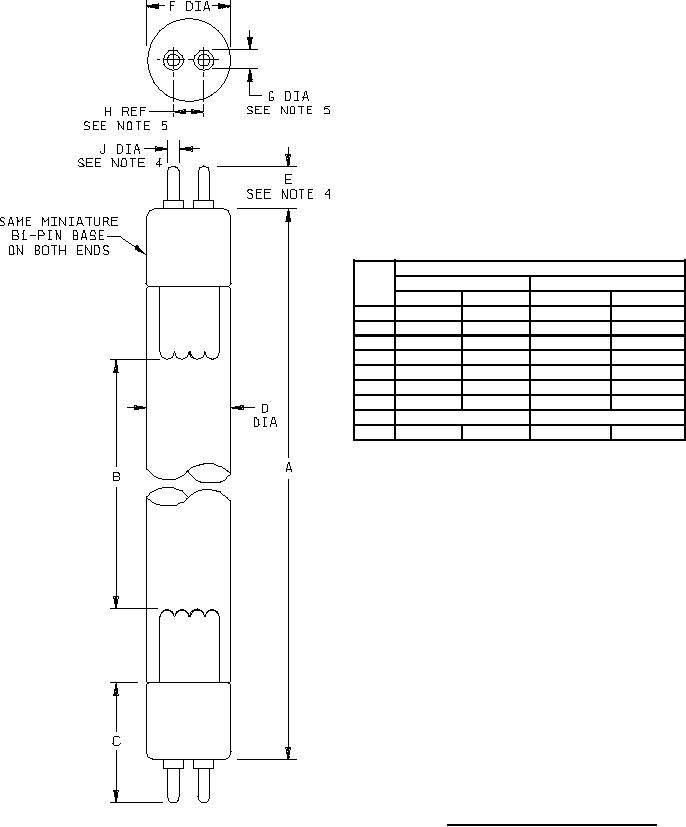

FIGURE 3. Electron tube, type 6782 (noise source).
5
