MIL-PRF-1/894G
TABLE I. Requirements or tests - Continued.
NOTES:
1/ Below 200 Hz, Ib = 3 mA dc (maximum).
2/ Grid resistance shall be not less than 1,000 ohms per volt (maximum instantaneous) applied to grid.
3/ Peak voltage between any electrode and heater shall not exceed 350 volts.
4/ This test shall be the first test performed at the conclusion of the holding period.

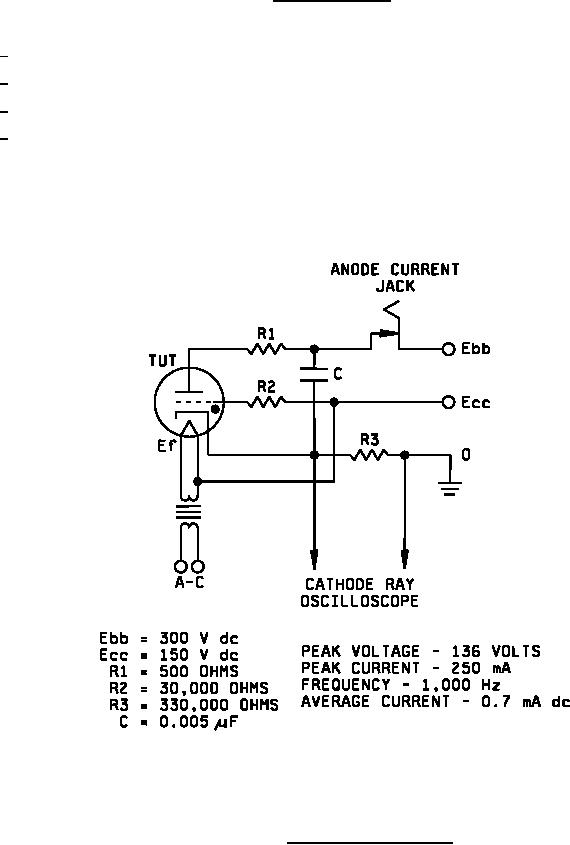

FIGURE 1. Relaxation oscillator test circuit.
3
