MIL-PRF-1/770F
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
.026
.036
0.66
0.91
B
.120
.130
3.05
3.30
C
1.920
1.930
48.77
49.02
D
1.795
1.805
45.59
45.85
E
1.620
1.630 DIA
41.15 DIA 41.40 DIA
DIA
F
2.245
2.255 DIA
57.02 DIA
57.28 DIA
DIA
G
.781 DIA
.791 DIA
19.84 DIA
20.09 DIA
H
1.995
2.005 DIA
50.67 DIA
50.93 DIA
DIA
J
.307 DIA
.317 DIA
7.80 DIA
8.05 DIA

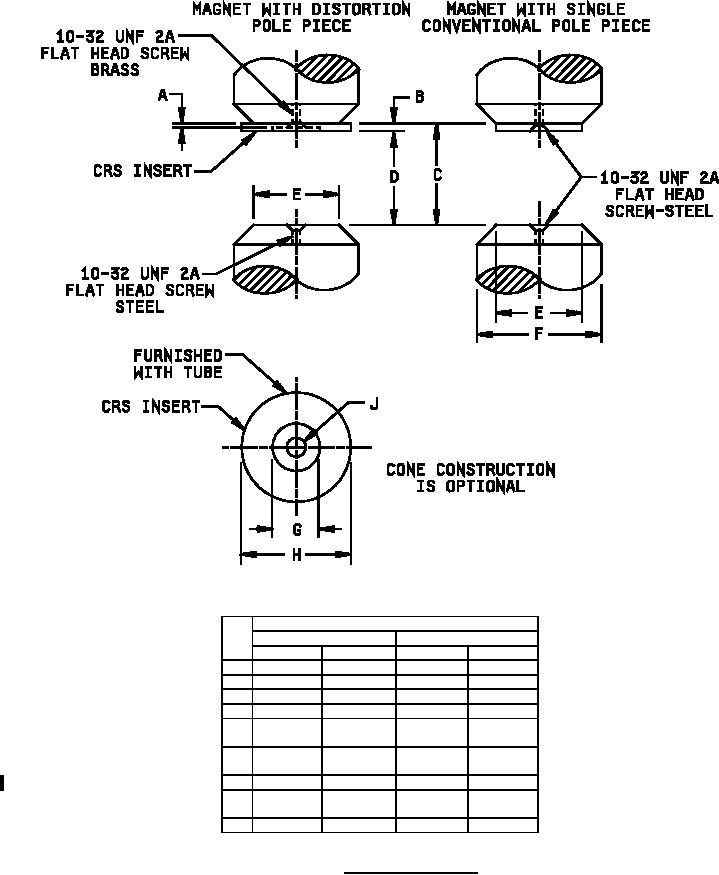

FIGURE 3. Magnetic field calibrators.
