MIL-PRF-1/607D
Dimensions
Ltr
Inches
Millimeters
in
Max
Min
Max
Conformance inspection, part 1 (See note 4)
A
.625
15.88
B
1.875
47.63
C
.109
.141
2.77
3.58
D
.347
.377
8.81
9.58
E
.165
.195
4.19
4.95
F
2.990
3.010
75.95
76.45
G
3.203
3.233
81.36
82.14
H
2.240
2.260
56.90
57.40
J
1.120
1.130
28.45
28.70
K
1.490
1.510
37.85
38.35
L
1.703
1.733
43.26
44.02
M
2.609
2.641
66.27
67.08
N
2.490
2.510
63.25
63.75
P
1.245
1.255
31.62
31.88
Q
4.109
4.141
104.37
105.18
R
2.985
3.015
75.82
76.58
S
.203 Dia
.234 Dia
5.16 Dia
5.94 Dia
T
1.484
1.516
37.69
38.51
NOTES:
1. Gasket in accordance with drawing 189-JAN. Gasket to be firmly attached for a minimum of 75 percent of contact area.
2. Dimension E shall be measured prior to the attachment of the gasket to the tube.

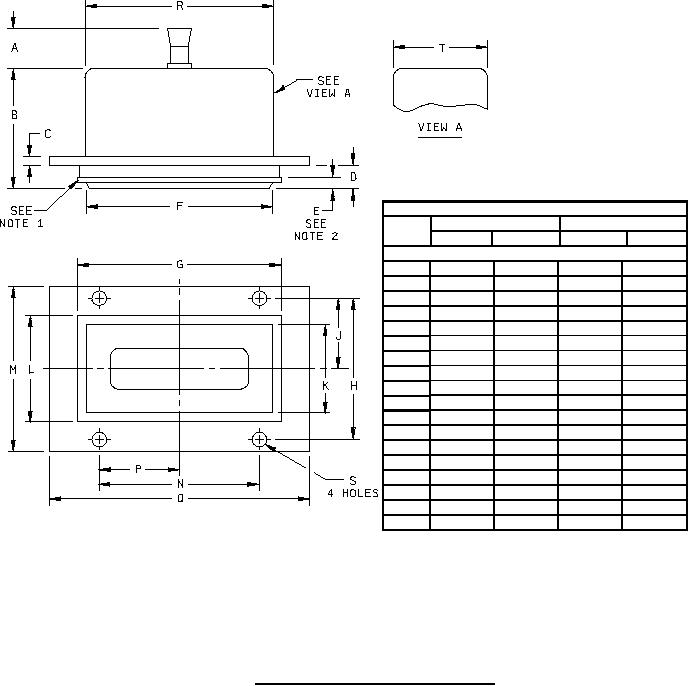

FIGURE 1. Outline of electron tube types 5921 and 5922.
3
