MIL-PRF-1/275E
Dimensions (See note 1)
Ltr
Inches
Millimeter
Min
Max
Min
Max
Conformance inspection, part 2
A
5.250
5.375
133.35
136.53
B
2.250
57.15
C
1.562
1.688
39.67
42.88
D
16.375
17.125
415.93
434.98
F
9.500
241.30
G
1.500
2.000
38.10
50.80
H
3.375
85.73
Conformance inspection, part 3
(See note 4)
L
Base: B11-66
M
Bulb contact: C1-1
Reference dimensions (See note 3)
E
16.220
411.99
J
10.000
254.00
K
.750 R
19.05 R
NOTES:
1. Metric equivalents (to the nearest .01 mm) are given for
general information only.
2. Useful screen radius.
3. Reference dimensions are provided for information only
and are not required for inspection purposes.

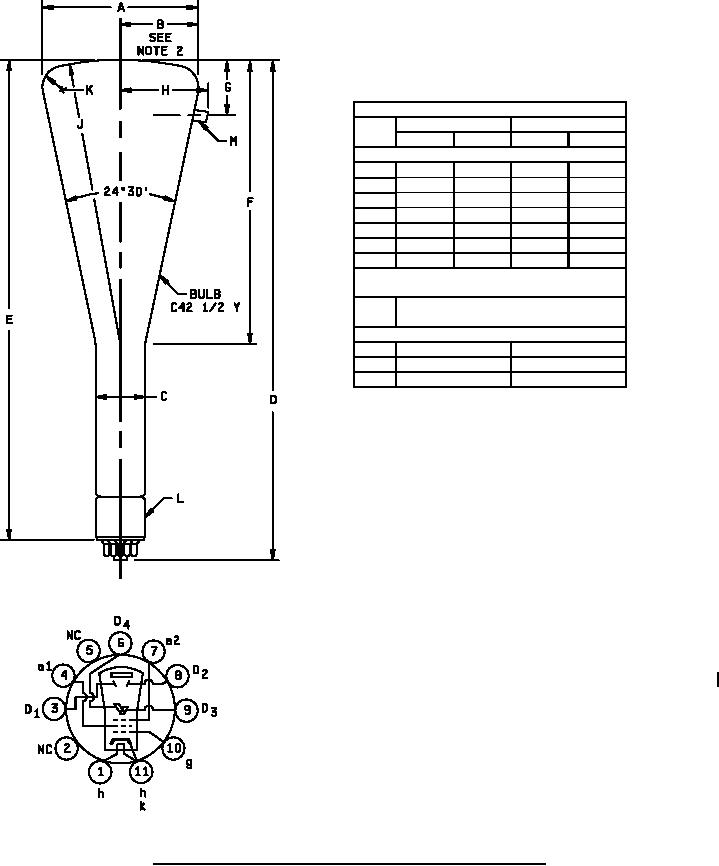

FIGURE 1. Outline drawing of electron tube types 5LP1A, 5LP5A, 5LP7A, AND 5LP11A .
6
