MIL-PRF-1/1712D
Dimensions
NOTES:
1. Heater leads shall be Surpremant type SE-HV(30) 1927A(90)
Ltr
Inches
mm
brown and yellow or ITT ETD P/N's 282359 (brown) and 282360
(yellow), or equivalent for use with terminal AMP 35538, or equal.
Min
Max
Min
Max
2. Heater leads omitted for clarity.
A
3.365
3.385
85.47
85.98
B
1.630
1.750
41.40
44.45
C
.440
.560
11.18
14.22
D
.940
1.060
23.88
26.92
E
7.802
7.822
198.17
198.68
F
17.500
18.000
444.50
457.20
G
.271
.291
6.88
7.39
H
.350
.410
8.89
10.41
J
3.850
3.910
97.79
99.31
K
---
.250
---
6.35
L
---
4.250
---
107.95
M
4.438
5.500
112.73
139.70
N
.812
1.500
20.62
38.10
P
2.312
3.750
58.72
95.25
R
10.438
11.000
265.13
279.40
S
1.250
1.875
31.75
47.63
T
.26
.500
6.60
12.70
U
19.70
20.30
500.38
515.62

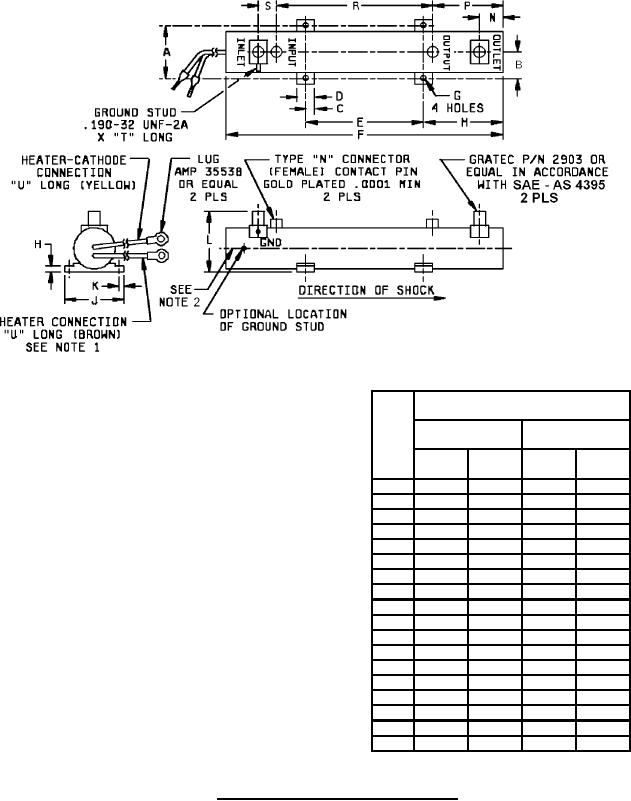

FIGURE 1. Outline drawing of electron tube type DOD-039.
6
