MIL-PRF-1/1619D
Dimensions (see note 1)
Ltr
Inches
Millimeters
Min
Max
Min
Max
Conformance inspection, part 2
A
4.094
4.156
103.99
105.56
C
---
3.625
---
92.08
D
.615
.635
15.62
16.13
E
1.490
1.510
37.85
38.35
F
2.990
3.010
75.95
76.45
G
.812
.938
20.62
23.83
H
1.375
1.625
34.93
41.28
P
8.000
9.000
203.20
228.60
R
---
.040
---
1.02
S
---
.025
---
0.64
Conformance inspection, part 3
(see note 2)
B
.781
.844
19.84
21.44
J
.375
.438
9.53
11.13
K
3.875
4.250
98.43
107.95
L
2.937
3.063
74.60
77.80
M
.688
.812
17.48
20.62
N
1.188
1.688
30.18
42.88
Q
1.000
1.125
25.40
28.58
NOTES:
1. Metric equivalents (to the nearest 0.01 mm) are
given for general information only and are
based upon 1 inch = 25.4 mm.
2. See 6/

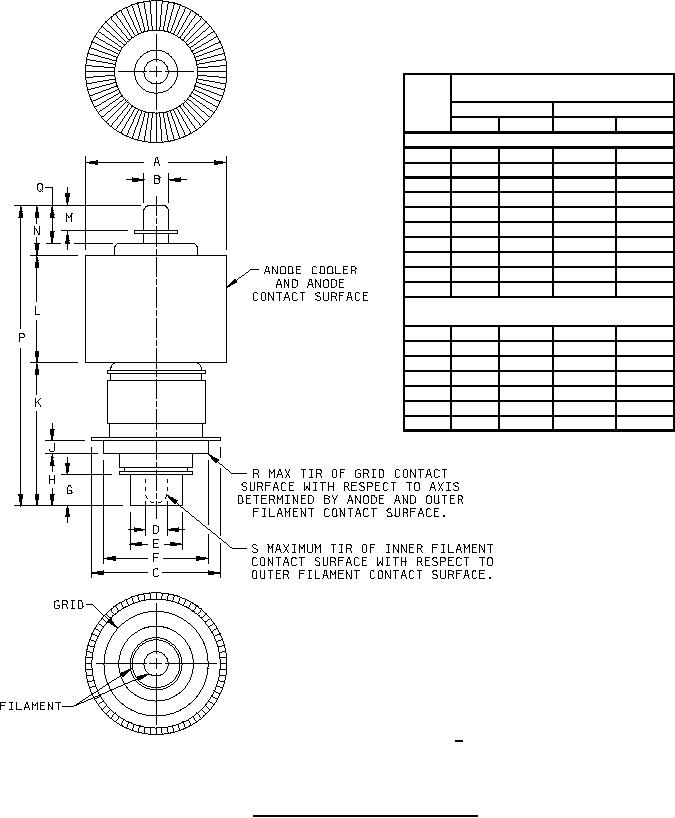

FIGURE 1. Outline drawing of electron tube type 8161
4
