MIL-PRF-1/1405E
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
4.5625
4.6875
115.69
119.06
B
3.9687
4.0313
100.80
102.40
C
.0937
.1563
2.38
3.97
D
.375
.500
9.53
12.70
E
---
16.625
---
422.28
F
10.4687
10.5313
265.90
267.50
G
2.657
2.719
67.49
69.06
H
.7187
.7813
18.25
19.85
J
11.4687
11.5313
291.30
292.90
K
.7187
.7813
18.25
19.85
L
3.5679
3.6405
90.62
92.47
30 NOM
30 NOM
M
N
.7187
.7813
18.25
19.85
P
.5937
.6563
15.08
16.67
Q
4.9687
5.0313
126.20
127.80
R
3.437
3.499
87.30
88.87
S
3.219
3.281
81.76
83.34
T
.9314
.9436
23.66
23.97
U
1.814
1.936
46.08
49.17
V
.5937
.6563
15.08
16.67
W
.059
.069
1.50
1.75
NOTE: Pins 5 and 6 are connected internally.
X
1.788
1.820
45.42
46.23
Y
Input UG -19 B/U connector

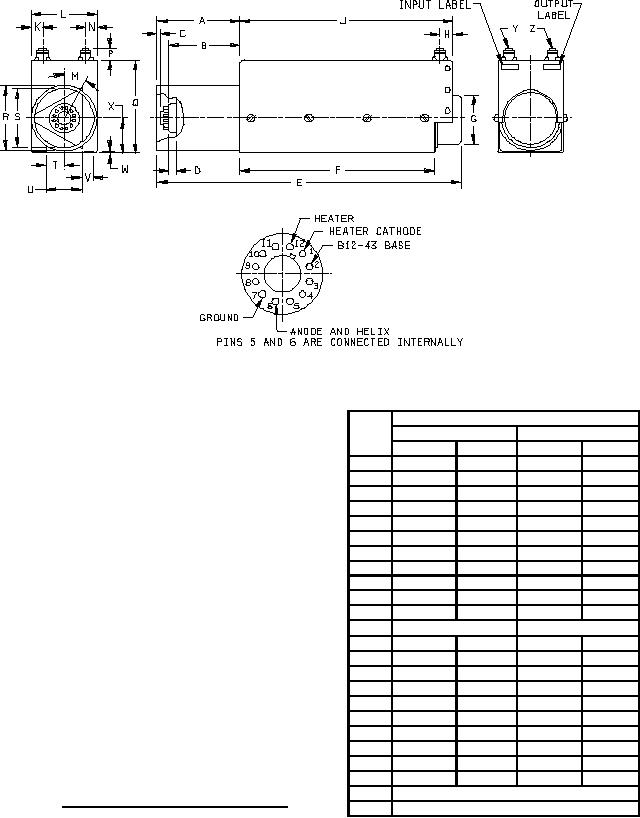

FIGURE 1. Outline drawing of electron tube type 7640.
Z
Output UG-19B/U connector
4
