MIL-PRF-1/1394C(USAF)
Dimensions
NOTES:
Ltr
Inches
Millimeter
1. Miniature bi-pin base.
Min
Max
Min
Max
2. .380 inch (9.65 mm) maximum, no minimum
A
---
.579 DIA
---
14.71 DIA
dimension on diameter for this length of tube.
B
.370 DIA
.380 DIA
9.40 DIA
9.65 DIA
3. Brass contact.
C
1.450
1.550
36.83
39.37
4. Dimensions shown in inches.
D
.183 DIA
.193 DIA
4.65 DIA
4.90 DIA
E
---
2.750
---
69.85
F
8.625
---
219.08
---
G
---
.500
---
12.70
H
---
.563
---
14.29
J
11.938
12.250
203.21
311.15
K
.268
.348
6.81
8.84

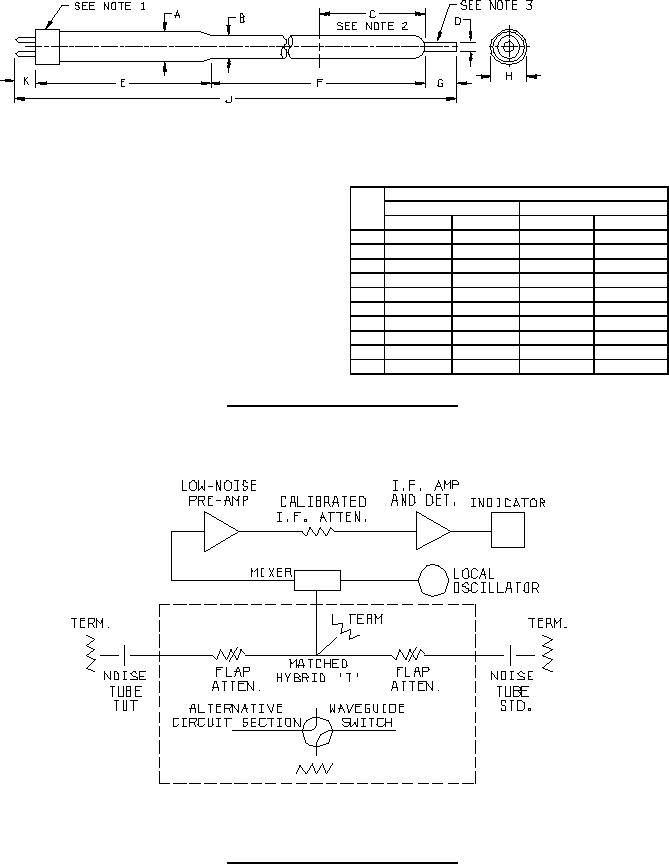

FIGURE 1. Outline drawing for electron tube type 6357.
