MIL-PRF-1/1291H
Pin connections
Pin No.
Element
1 and 2
f
3
nc
4
g
5
nc
7 and 8
f
cap
a
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
Conformance inspection, part 2
A
6.000
6.625
152.40
168.28
B
---
2.063
---
52.40
C
5.410
6.055
137.41
153.80
Conformance inspection, part 3
(periodic check)
D
Cap: C1-1 with ceramic collar (EIA)
E
Base: B7-12 (EIA)
F
Bulb: T16 (JEDEC Pub. 29)
G
Bulb: ST16 (JEDEC Pub 28)
NOTE: Alternate configuration ST-16, without ceramic collar, may be used.

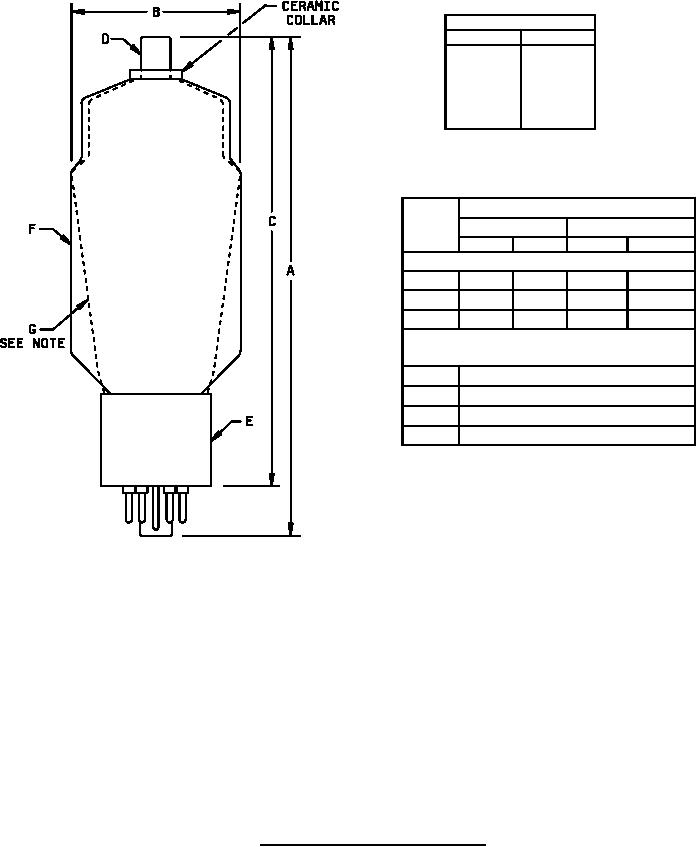

FIGURE 1. Outline drawing of electron tube type 7410.
4
